Only use approved Porter-Cable fasteners.
Operator and others in work area MUST wear safety glasses with side
shields. Always wear ANSI Z87.1 approved safety glasses, and ANSI
S3.19 approved hearing protection when preparing or operating the
tool.
Never use a tool that is leaking air, has missing or damaged parts, or
requires repair.
2. Pull staple follower all the way to the rear (see Fig. 19), allowing follower
to lock in the open position.
3. Drop a strip of staples onto the guide rail (see Fig. 20).
4. Depress the follower latch button (A) Fig. 21, to unlock the follower and
slide forward against staples.
5. Adjust directional exhaust deflector (A) Fig. 22, so that the exhaust air
blast will be directed away from the operator. The exhaust deflector provides
seven detented positions for directing the exhaust blast away from the
operator. Grasp the deflector and rotate it to the desired position for the
current application.

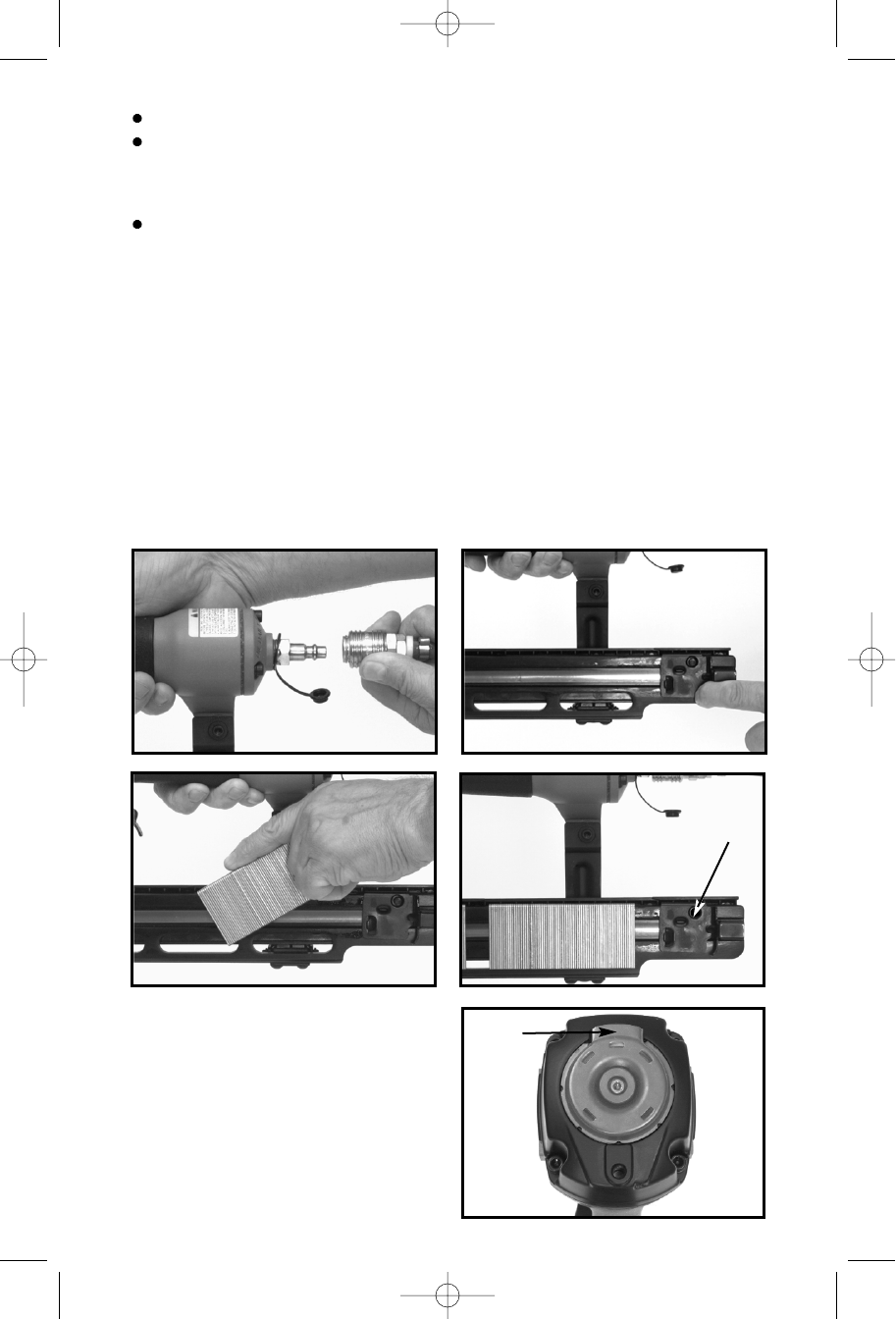

Fig. 18
Fig. 19
Fig. 21
A
Fig. 22
Fig. 20
➡
➡
A
