A jammed nail or staple must be cleared
before using the nailer/stapler again.
To clear a jammed nail or staple from
the magazine, do these steps:
1. DISCONNECT NAILER/STAPLER FROM
THE AIR SUPPLY!
2. Unlock the catch lever and pull the
magazine pusher back completely.
3. Locate and remove the jammed
nail/staple with a pair of needle nose
pliers.
4. Throw the damaged nail/staple away.
5. Inspect the nail/staple stick. If it is
bent or damaged, throw it away and
insert a new stick that only contains
clean, undamaged nails/staples. DO
NOT use dirty or damaged nails/
staples!
6. Push the magazine pusher forward to
the front of the magazine until the
catch lever locks.
Clearing Jammed Nails
To clear a jammed nail from the dis-
charge area, do these steps:
1. DISCONNECT NAILER/STAPLER FROM
THE AIR SUPPLY!
2. Unlock the catch lever and pull the
magazine pusher back completely.
3. Remove the nail/staple stick from the
magazine.
4. Loosen the cap screws shown in
Figure 7, and remove the cover with
a 3mm hex wrench. Dislodge the
jammed nail/staple with a pair of
needle nose pliers.

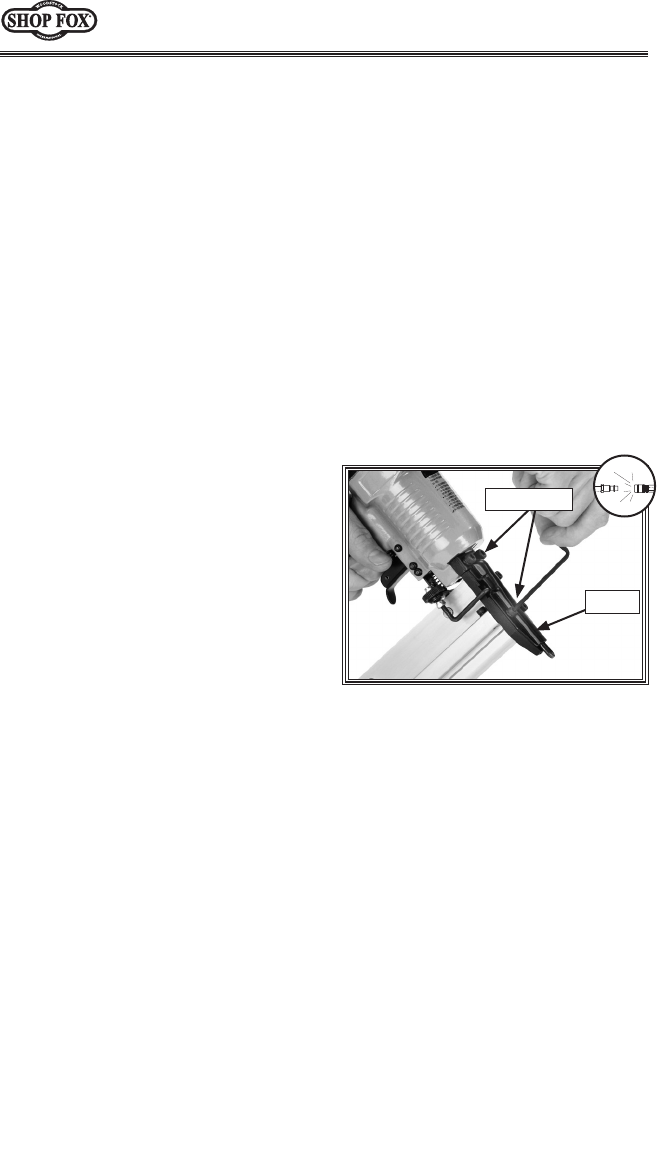

Figure 7. Opening cover to clear a jam.
Cover
Cap Screws
5. Secure the cover with the cap screws
removed in Step 4.
6. Throw the damaged nail/staple away.
7. Inspect the nail/staple stick. If it is
bent or damaged, throw it away and
insert a new stick that only contains
clean, undamaged nails/staples. DO
NOT use dirty or damaged nails/
staples!
8. Slide the magazine pusher forward to
the front of the magazine until the
catch lever locks.
