Cleaning
Proper cleaning is the best way to ensure
trouble free performance from your spray
gun. If your gun is not thoroughly cleaned,
damage and poor spraying will result.
Problems caused by improper cleaning will
not be covered by the warranty. Clean the
spray gun immediately after each use.
To clean your spray gun:
1. Spray a small amount of solvent
through the spray gun.
Note: Check with local laws
regarding this practice. If you are
spraying on a regular basis, spraying
solvents into the air may be illegal. A
cabinet style spray gun cleaner may
be required.
2. DISCONNECT SPRAY GUN FROM AIR!
3. Unscrew the cup.
4. Disassemble the gun by unscrewing
the fluid control knob, removing the
spring and needle (Figure 10).
5. Unscrew the atomizing cap with
your fingers and the fluid tip with
the service wrench. The fully
disassembled gun should look like
Figure 10.
6. Rinse these parts thoroughly in
solvent then dry with compressed air
or let air dry.
Note: If the small holes in the
atomizing cap become blocked, soak
in clean solvent. If the blockage
still exists, clear the blockage with
a small needle, taking great care
not to enlarge or damage the hole.
Damage to the hole will create a
disrupted spray pattern.
7. Use the cleaning brush with solvent
to clean the inner orifice and other
hard to reach areas on the outside of
the spray gun body.
8. Wipe the rest of the gun body with a
shop towel and dry.
CLEANING & LUBRICATION

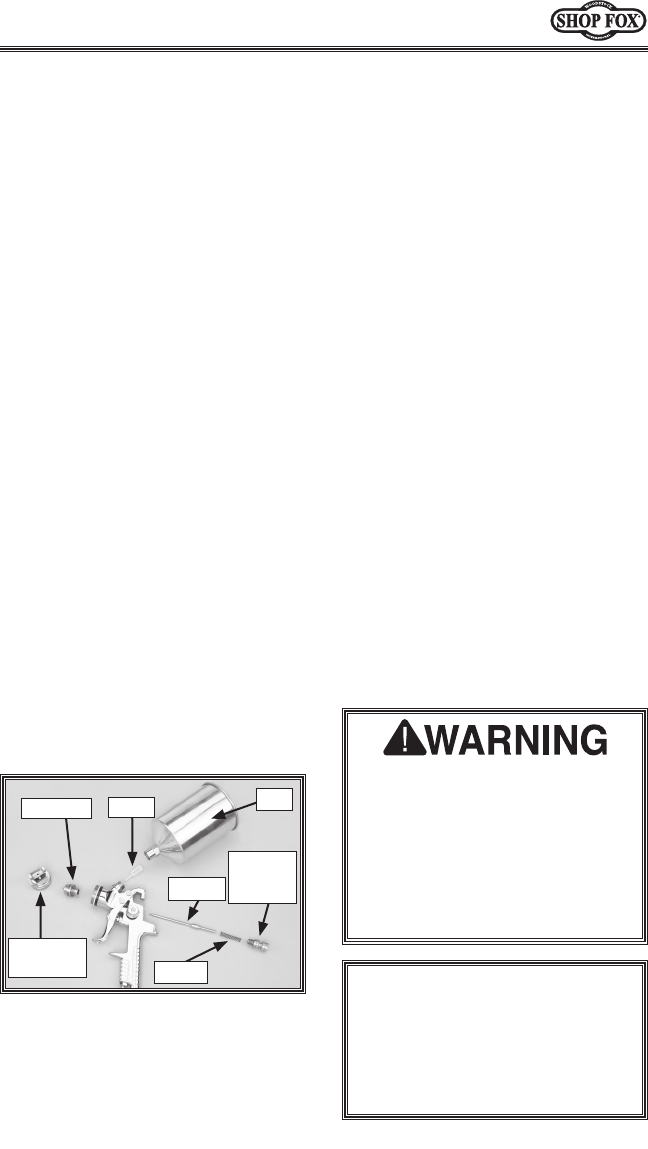

Figure 10. Disassembly for cleaning.
Atomizing
Cap
Fluid Tip
Filter
Spring
Cup
Fluid
Control
Knob
Needle
EXPLOSION HAZARD! Chlorinated
Solvents like Tricloroethane and
Methylene Chloride (methyl chloride)
can chemically react with aluminum
and may explode. Many parts in spray
guns are made of aluminum. Read
solvent label carefully before using
solvent.
NOTICE
DO NOT soak the spray gun body
in solvent. Prolonged exposure to
solvent will rapidly deteriorate the
spray gun washers and seals. Ignoring
this notice will void your warranty.
