10 Sun StorEdge 3000 Family Best Practices Manual • October 2003

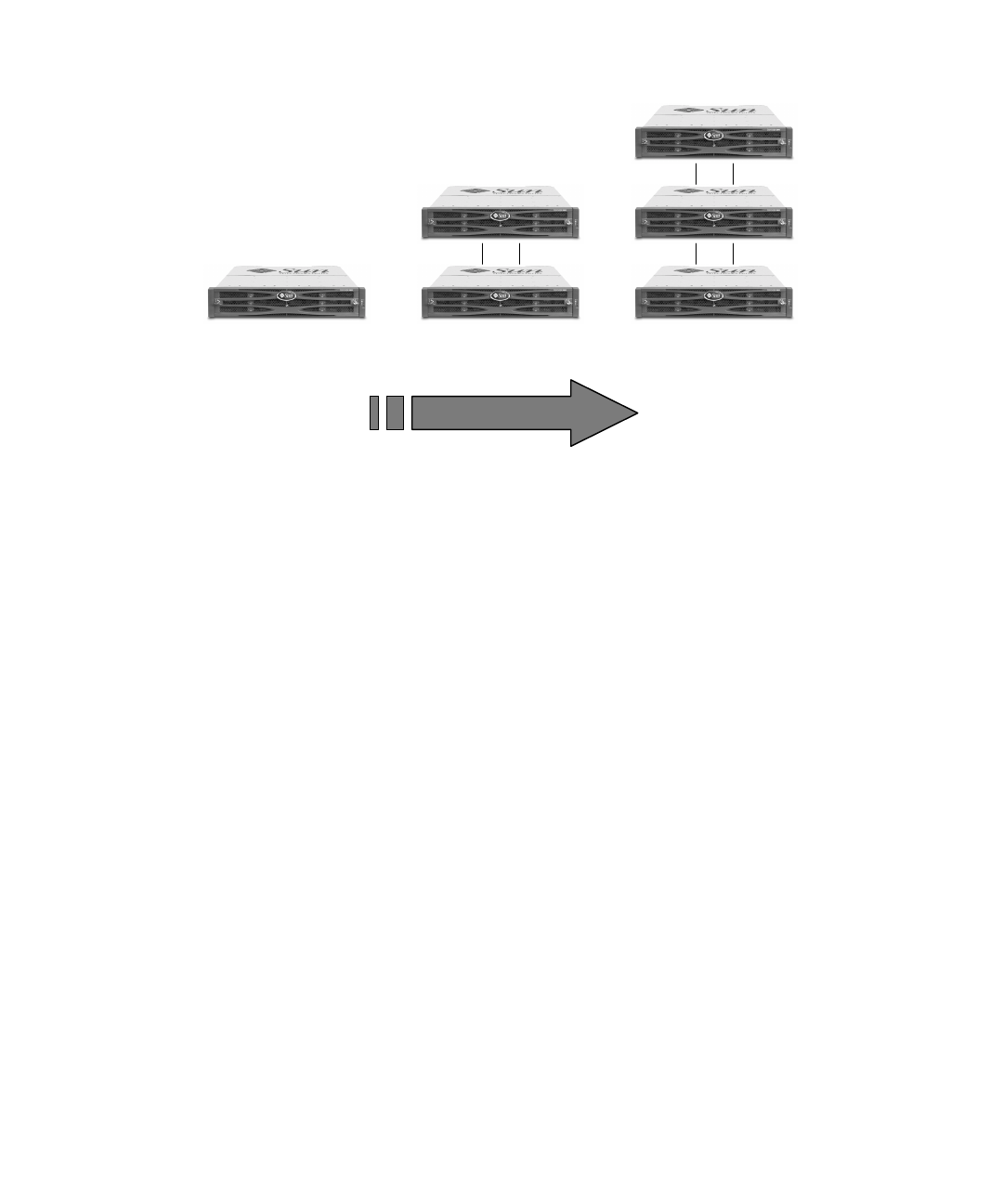

FIGURE 3 Increasing Capacity
First Steps
There are two simple yet effective approaches for designing a Sun StorEdge 3510 FC
array solution into your environment. Both methods allow for the rapid estimation
of an appropriate DAS or SAN solution. Regardless of which method is used, the
storage needs of each application and server involved must be identified to establish
the total amount of storage capacity required.
The first method works well for existing environments. Start by identifying the
number of servers that can immediately benefit from the Fibre Channel storage the
Sun StorEdge 3510 FC array provides. For five or more servers, a SAN solution can
provide the necessary connectivity to support them all. If there are four or fewer
servers, a DAS solution is sufficient, though a SAN solution remains a powerful
option. Determine the amount of storage currently accessible to these servers and
plan for that total capacity as the minimum amount of Sun StorEdge 3510 FC array
capacity needed.
Another technique involves matching a particular environment to one of the Sun
StorEdge 3510 FC array best practices solutions described in this document. This
approach works particularly well with new deployments, but it can be used for
existing environments as well. Compare the total number of servers in each solution.
Take notice of special features, such as the number of connections between servers
and storage. While these solutions do not match every environment exactly, use the
closest one as a design blueprint that can be customized to suite your particular
Scalability
Up to 12 disks Up to 24 disks Up to 36 disks
