2-9
Preparing and Installing the 9A426-02 Module

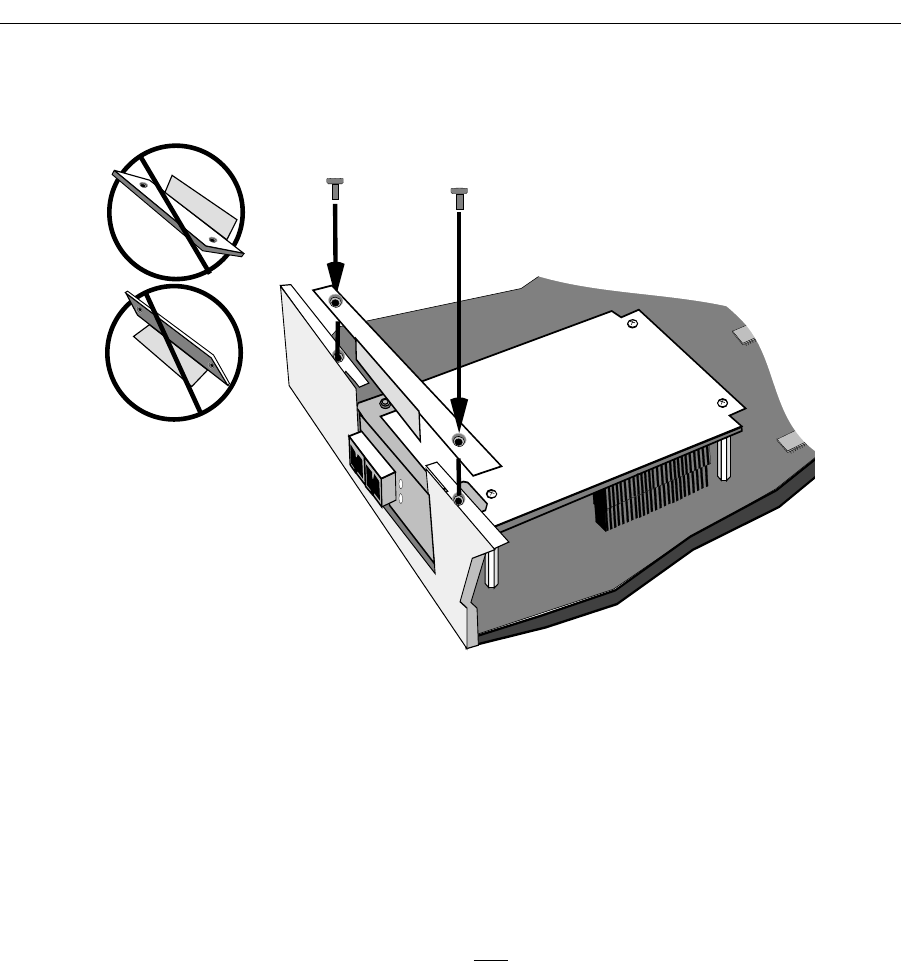

Figure 2-7. Attaching the ATM-Port Retaining Plate to the 9A426-02 Module
User-Accessible Components on the Module’s
Daughterboard
The user accessible components on the module’s daughterboard are located on
the underside of the daughterboard. These components include an eight position
DIP switch, a replaceable SMB-1 PROM, a replaceable BOOT PROM, and sockets
for DRAM and FLASH memory.
You can access the DIP switch without
removing the daughterboard.
However, to access the other user-accessible
components on the daughterboard, you must remove the daughterboard from the
motherboard.
