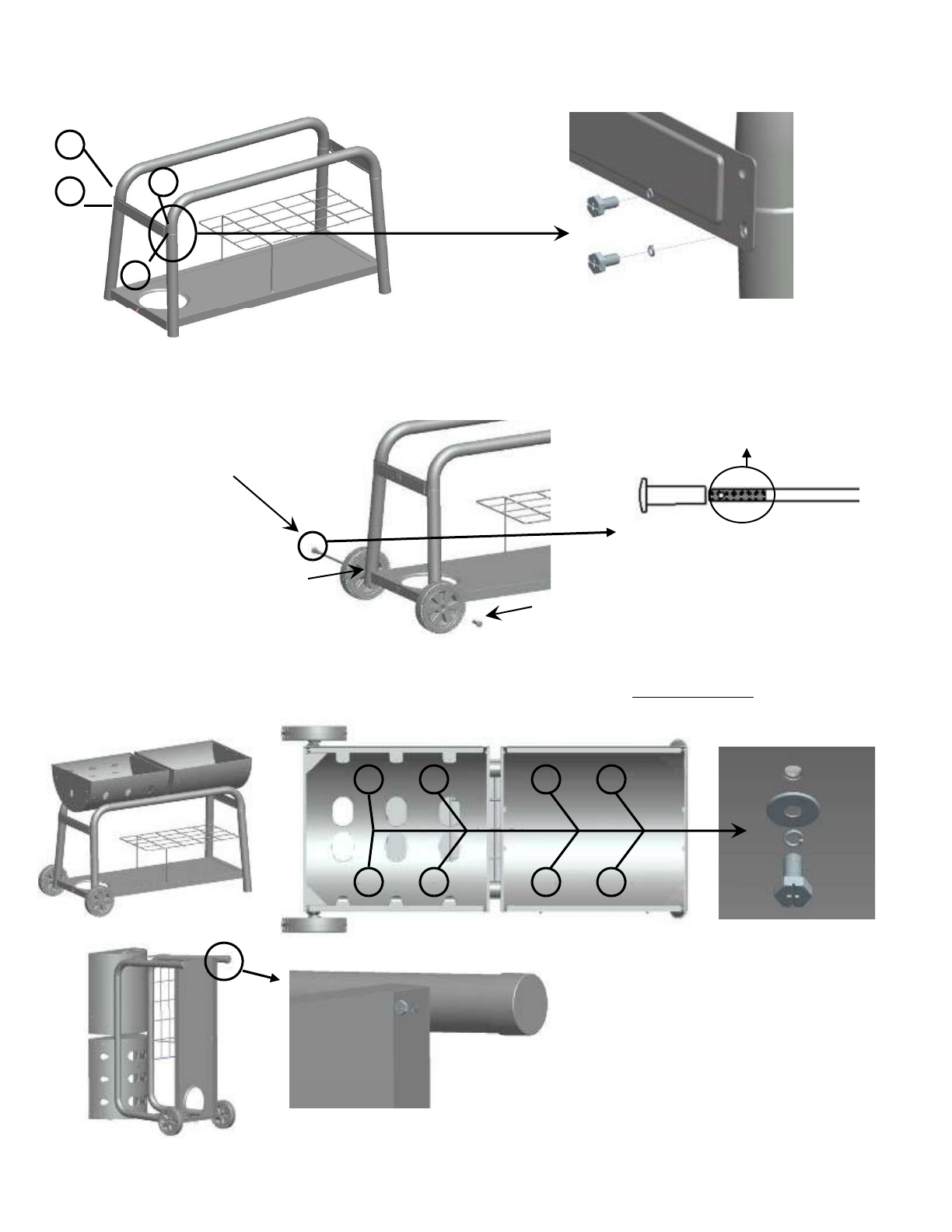

Step 4
Install the LEG BRACES to the LEGS using eight (8) LOCK WASHERS and eight (8) ½” BOLTS as
shown. Remember to NOT tighten the bolts until completing step 6.
1
3
2
4
Step 5
Push one AXLE CAP onto the AXLE then slide the AXLE through WHEELS and legs as shown.
Then turn cart/leg assembly on back side and push second AXLE CAP onto AXLE.
Decorative part of axle.
Make sure WHEEL
hub/protrusion is touching leg.
AXLE CAP
AXLE
Do NOT push AXLE CAP more
after the CAP fully covers
decorative part of AXLE
Step 6
Attach the GAS GRILL BODY and CHARCOAL GRILL BODY to the LEG CROSSBAR using eight (8)
LOCK WASHERS, eight (8) ½” BOLTS and eight (8) FLAT WASHERS in order shown. Make sure to
insert the bolt first through the lock washer then the flat washer then through the grill body as shown.
3
4
3
4
3
4
12
3
4
12
Turn grill assembly up on end as shown
and tighten ALL nuts and bolts.
page 11
