END
BOLTS
(14)
ACTIVE
ROLLER
(3)
POSITIVE
ROLLER
(4)
THICKNESS ADJUSTING BOLT
(15)
WASHERS
(13)
DIES
(19-1 THRU 24-2)
ROLL BLOCK
(2)

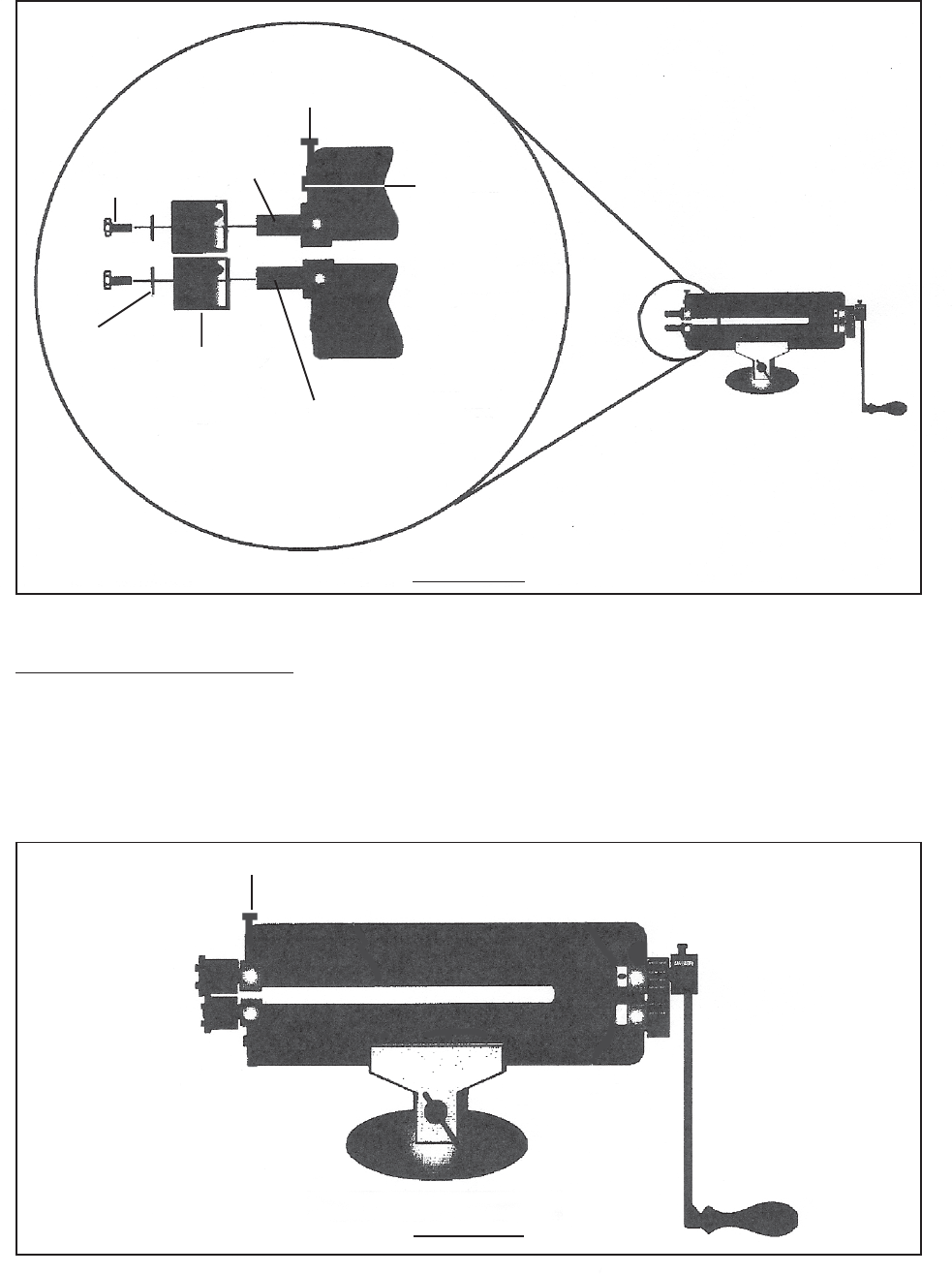

FIGURE D
Adjusting Roller Tension:
1. Adjust the Thickness Adjusting Bolt (15) only finger tight. (See Figure E.)
2. Use a 3/8” wrench to tighten the Thickness Adjusting Bolt (15) 1 to 3 turns, de-
pending on desired results. (See Figure E.)
THCKNESS ADJUSTING BOLT (15)
FIGURE E
SKU 93364 For technical questions, please call 1-800-444-3353 PAGE 8
