Repair Information 4-5
5016-001

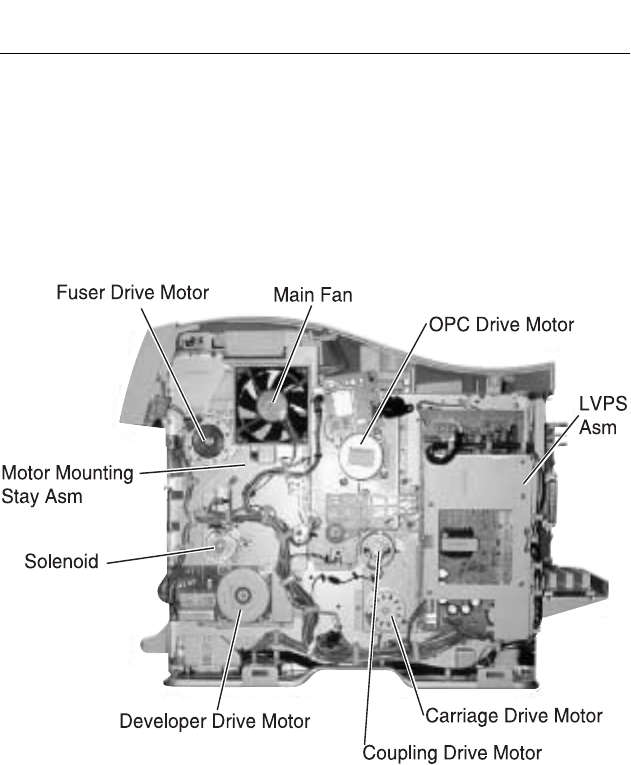

Right Side Removals
Remove the right side cover, refer to the Right Side Cover
Removal on page 4-4 and remove any of the following FRUs.
Note: Take care when removing the cables on the right side of the
printer. Always ensure to route the cables through the appropriate
cable clips as shown.
