FRONT AV (AUDIO/VIDEO) INPUT CONNECTION
A
A
udio and Video Front Inputs are available for a quick connection to a VCR, to playback video from a camera or attach
a gaming device. Use the
AV
button on the remote control to tune these inputs.
AV button on the remote control to tune these inputs.AV
1
Connect the V
IDEO (yellow)
cable from the
V
IDEO output on the Camera (or accessory
device) to the Video (yellow) Input located on
the FRONT of the TV.
2
Connect one end of the audio cable from the
Audio Out
jack on the dev
ice to the Audio In
(white) jack on the FRONT of the TV.
3
Turn
the TV and the accessory de
vice O
N.
4
Press the
CH+
or
CH-
button on the remote
control to tune the TV to the front
input jacks.
AV
” will appear on the TV screen.
AV” will appear on the TV screen.AV
5
Press PLAY
Æ
button
on the accessory
devic
e to view playback,
or to access the
accessory device (camera, gaming unit
, VCR etc.).
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
IN
IN
OUT
OUT
— VOLUME +
CHANNEL
MENU
POWE
R
AUDIOVIDEO
VOLUME
+
MENU
CHANNEL
POWE
R
AUDIOVIDEO
1
2
3
5
3

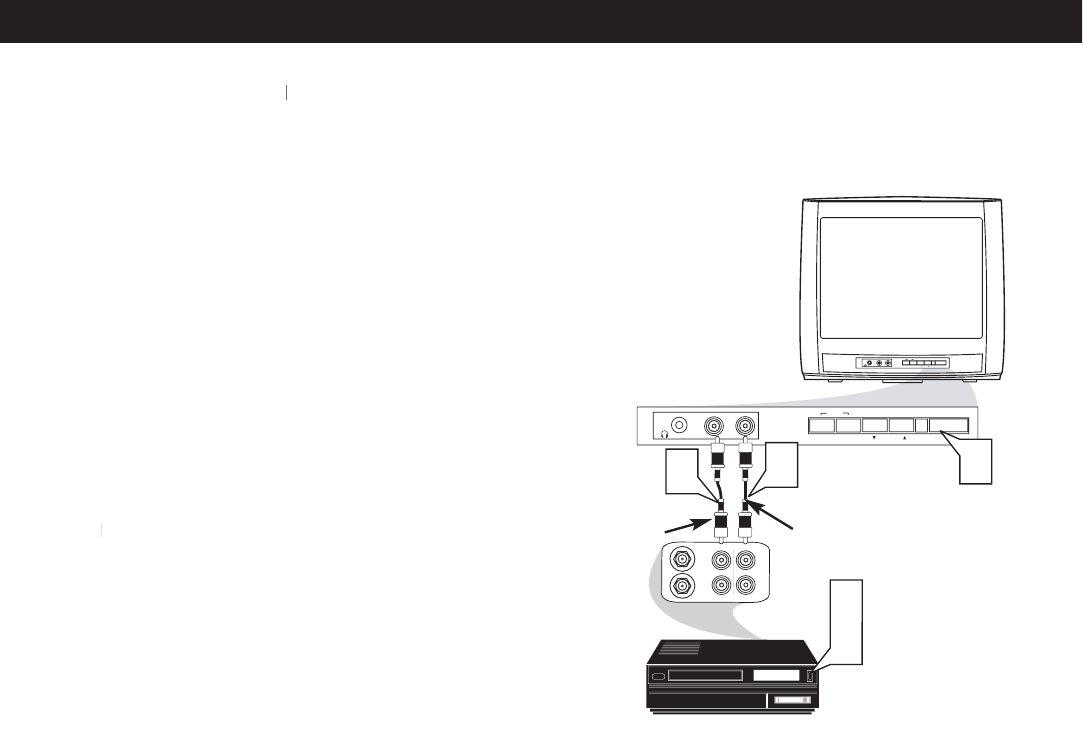

VCR, Camcorder,
DVD
Player, etc. with
Audio and
Video Out jacks
Front Jack panel of TV
White
Audio cable
Yellow
Video
cable
