SANUS VMF518 Manual

A SERVICE OF

next previous

9

4 5 6

89 mm

(3½ in.)

5.5 mm

(7/32 in.)

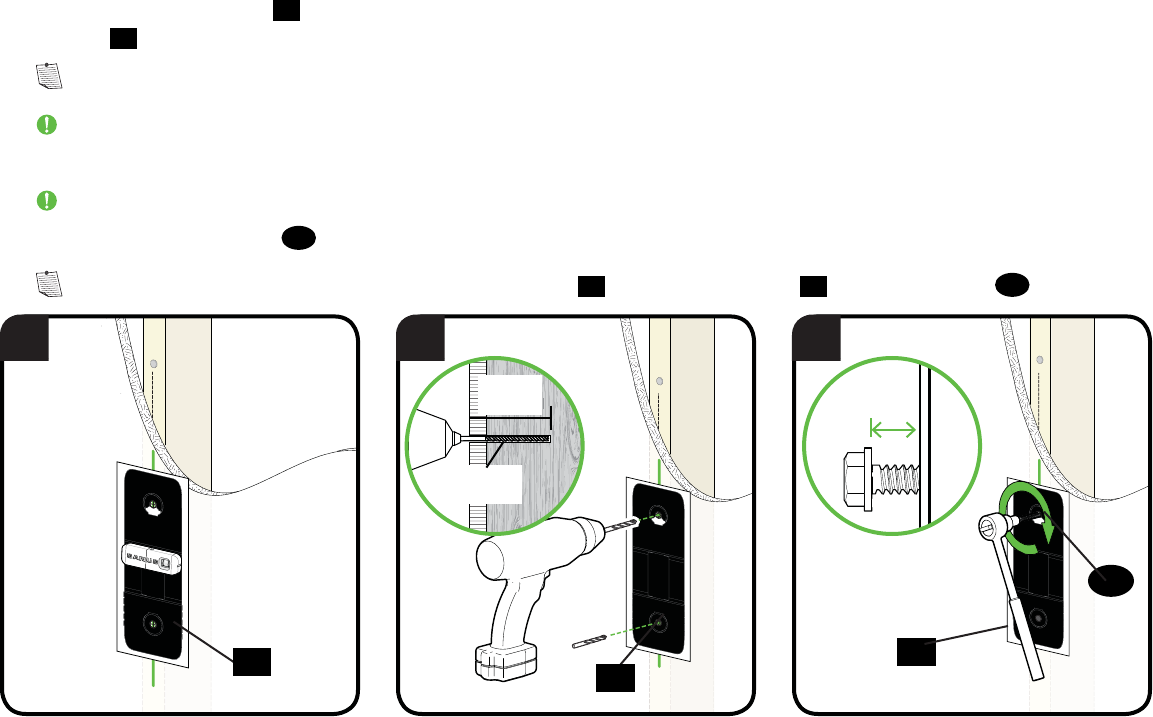

4. Place the wall plate template

10

at your desired height and position the slotted holes over your stud center line. Level the wall plate

template

10

and tape in place.

NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.

IMPORTANT: Be sure you mark and drill into the center of the stud.

5. Drill the two pilot holes using a 5.5 mm (7/32 in.) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 89 mm (3 ½ in.).

6. Partially install the top lag bolt

13

,

leaving about 13 mm (1/2 in.) space from the wall.

NOTE: This space allows you to remove the wall plate template

10

and hang the wall plate

11

onto the top lag bolt

13

.

10

10

≈ 13 mm

(

1/2 in.)

10

13
