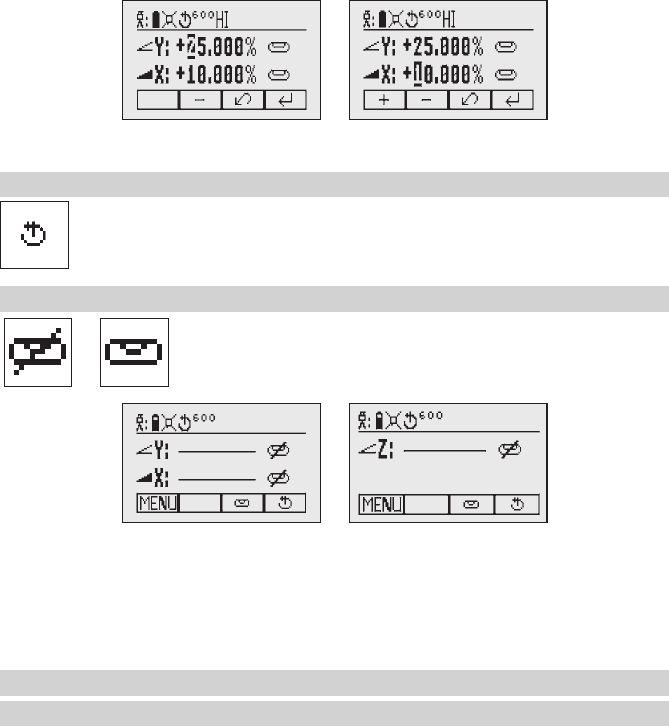

Usebutton 1 or 2(PlusorMinus)tosetthedesireddigit.

Thelaserwillself-leveltotherequiredgradepositionafterconfirmingthegradechangewithbutton4.

Note: Thebubblesymbolsatthelaser’sLCDwillflashuntilthelaserhasbeenself-leveledtotherequested

grade position.

Using the Rotation mode

Repeatedly pressing the button 4togglesthrough300,600,900rpmregardlessiftheunitisin

automatic or manual mode.

Manual mode

Pressing and releasing button 3attheStandardDisplayactivates/deactivates

the manual mode regardless if set up horizontal or vertical.

Manualmodeisindicatedbyhorizontallinesnexttotheaxessymbols.

InManualmode(horizontal),theY-axiscanbeslopedbypressingtheUp-(5)andDown-Arrow-(8) buttons on

thelaser‘skeypadortheremotecontrol.Additionally,theX-axiscanbeslopedbypressingtheLeft-(6) and

Right-(7)Arrow-buttonsonthelaserorremotecontrol.

Inverticalmode,theupanddownarrowbuttonsadjusttheZ-axisslope,andtheleftandrightarrowbuttons

alignthelaserbeamtotheright/leftside.

To resume automatic self-leveling mode, press the manual button again.

Special MENU Features

Menu Functions (Radio controlled)

Press and release button 1attheStandardDisplaytoentertheMENU.

The menu offers always only the features which can be selected depending on the setup (horizontal

or vertical).

The icon of the selected function will be highlighted.

Adownarrowatthetherightsiteindicatesthattheusercanscrolldownthroughthemenuusingthe

button 8 (down arrow).

Aftergoingtothenextmenurow,anup/downarrowatthetherightsiteindicatesthattheusercanscrollup/

down through the menu (4 different screens) using the buttons 5/8(up/downarrows).

Pressing and releasing button 3 changes the unit always back to the standard or previous display.

Press and release the buttons 6/7 until the desired icon at the selected menu row is highlighted.

Press and release button 4 to open the submenu OR start the selected function.
