13
stations will not be able to access the router. If enabled, the WLAN LED will be lit up and
wireless stations will be able to access the router.
¾ SSID - Enter a value of up to 32 characters. The same SSID must be assigned to all
wireless devices on your network. The default SSID is TP-LINK_XXXXXX(XXXXXX
indicates the last unique six characters of each Router’s MAC address). This value is
case-sensitive. For example, TP-LINK is NOT the same as tp-link.
¾ Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the router can be used. It may be illegal to use the wireless function of the
router in a region other than one of those specified in this field.
¾ Channel - The current channel in use. This field determines which operating frequency will
be used.
¾ Mode - Indicates the current mode 54Mbps (802.11g), 11Mbps (802.11b). If you select
54Mbps (802.11g), it is compatible with 11Mbps (802.11b).
These settings are only for basic wireless parameters, for advanced settings, please refer to
Section 4.5: "Wireless."
)
Note:
The change of wireless settings won't take effect until the router reboots! You can reboot it
manually. If you need instructions as to how to do this, please refer to Section 4.12.5: "Reboot”
.
Click the Next button. You will then see the Finish page:

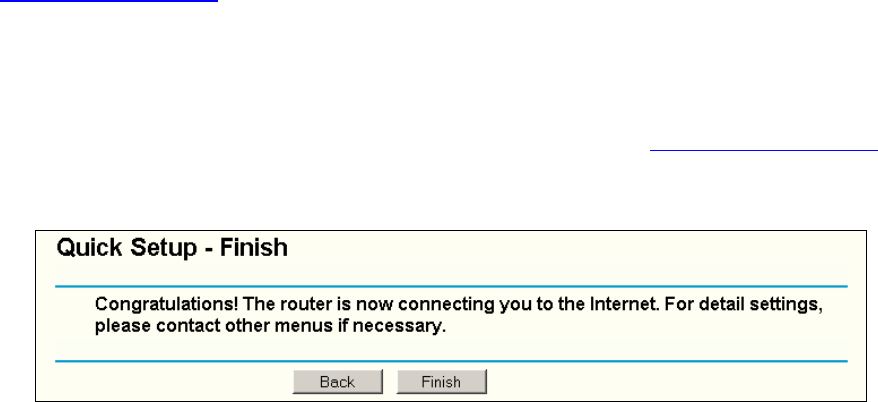

Figure 3-10 Quick Setup - Finish
After finishing all configurations of basic network parameters, please click Finish button to exit
this Quick Setup.
Chapter 4. Configuring the Router
This chapter describes each Web page's key functions.
4.1 Login
After your successful login, you can configure and manage the router. There are twelve main
