21
address to the router during login, click “Use the IP Address specified by ISP” check box
and enter the IP Address in dotted-decimal notation, which your ISP provided.
¾ Detect Online Interval - The default value is 0, you can input the value between 0 and 120.
The router will detect Access Concentrator online at every interval between seconds. If the
value is 0, it means, do not detect.
¾ DNS IP address - If you know that your ISP does not automatically transmit DNS addresses
to the router during login, click “Use the following DNS servers” checkbox and enter the IP
address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS
server address is available, enter it as well.
Click the Save button to save your settings.
4. If you choose 802.1X + Dynamic IP, you should enter the follow parameters(Figure 4-8) :

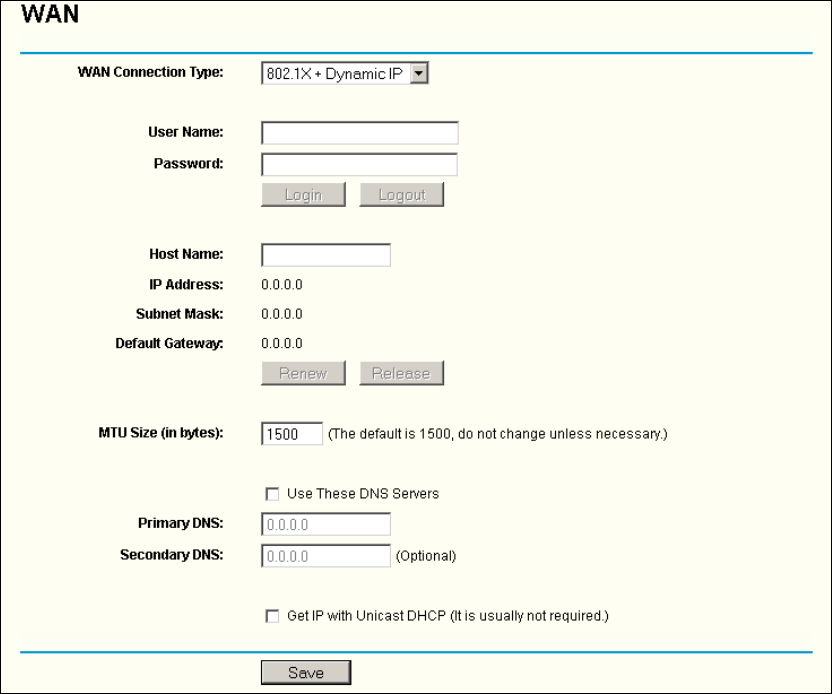

Figure 4-8 802.1X + Dynamic IP Settings
¾ User Name - Enter the user name for 802.1X authentication provided by your ISP
¾ Password - Enter the password for 802.1X authentication provided by your ISP.
Click Login to start 802.1X authentication.
