Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Sheat Metal Shear
Model number 1521 Amperage rating 4.5 A
Voltage rating 120 V 50 - 60Hz No load speed n
0
5,600/min
Shear Capacities:
Material Max. Sheet Thickness
Mild Steel (60,000 PSI) up to 16 Ga. (.060")
Most Alum. (36,000 PSI) up to 14 GA. (.075")
Stainless (87,000 PSI) up to 20 Ga. (.036")

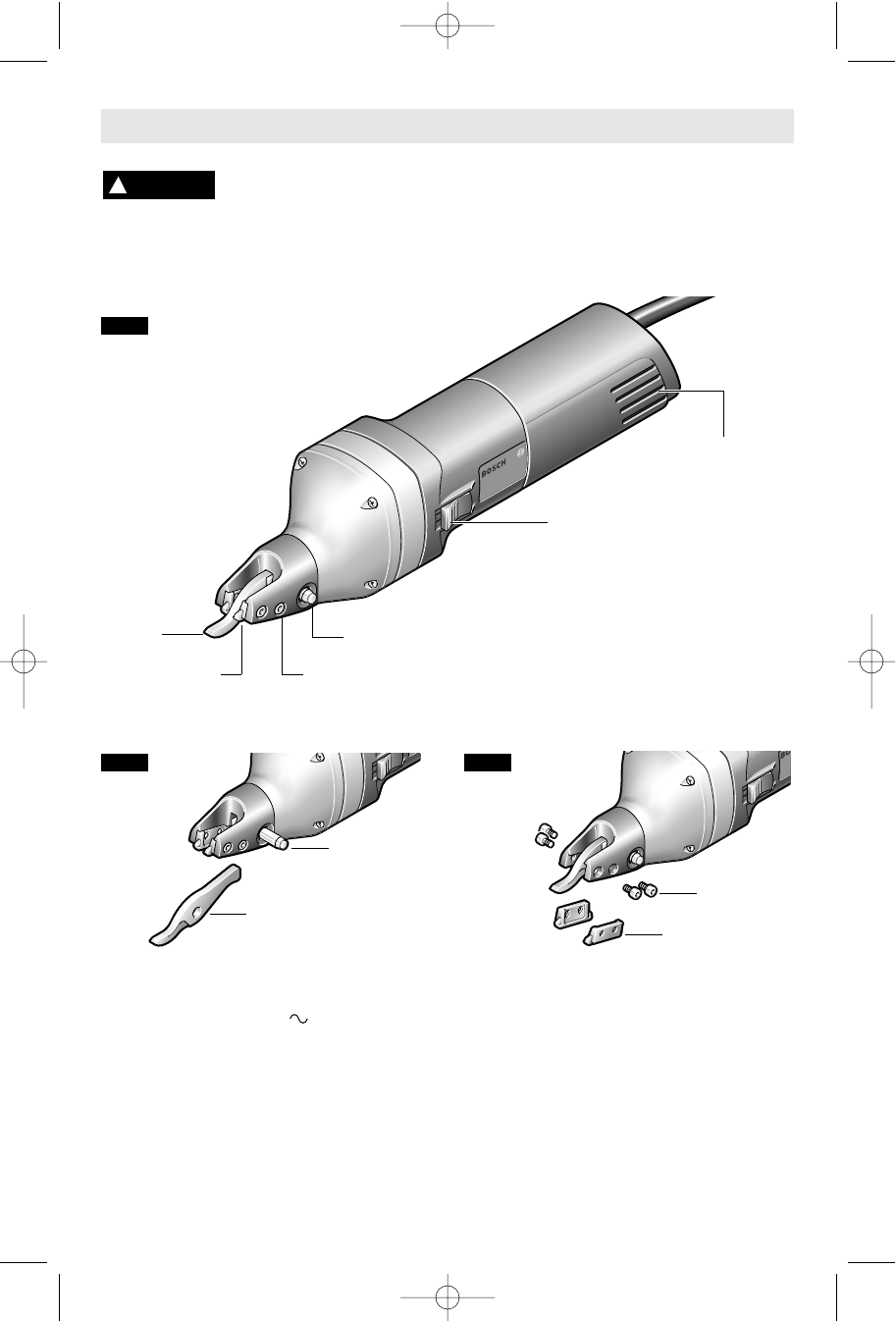

VENTILATION
OPENINGS
BLADE
CUTTING
JAWS
ALLEN
SCREW
BLADE PIN
SWITCH
BUTTON
BLADE PIN
STANDARD BLADE
#2 608 635 406
ALLEN
SCREW
CUTTING JAWS
#2 608 635 410 EACH
FIG. 2 FIG. 3
FIG. 1
