-14-
CHARGING BATTERY PACK (1 HOUR CHARGER)
INDICATORS, SYMBOLS AND MEANING
If the indicator lights are “OFF”, the charger
is not receiving power from power supply
outlet.
If the green indicator light is “ON”,
the charger is plugged in but the
battery pack is not inserted, or the
battery pack is fully charged and is being
trickle charged, or the battery pack is too hot
or cold for fast-charging. The charger will
switch to trickle charge, until a suitable
temperature is reached, at which time the
charger will switch automatically to fast-
charging.
If the green indicator light is
“BLINKING”, the battery pack is
being fast-charged. Fast-charging
will automatically stop when the battery pack
is fully charged.
Plug charger cord into your standard power
outlet. Before inserting battery pack, remove
protective cap, then insert battery pack into
charger (Fig. 12).
The charger’s green indicator will begin to
“BLINK”. This indicates that the battery is
receiving a fast charge. Fast-charging will
automatically stop when the battery pack is
fully charged.
When the indicator light stops “BLINKING”
(and becomes a steady green light) fast
charging is complete.
When you begin the charging process of the
battery pack, a steady green light could also
mean the battery pack is too hot or too cold.
The purpose of the light is to indicate that the
battery pack is fast-charging. It does not
indicate the exact point of full charge. The
light will stop blinking in less time if the
battery pack was not completely discharged.
When the battery pack is fully charged,
unplug the charger (unless you're charging
another battery pack) and slip the battery
pack back into the tool handle.
To prevent fire or injury
when batteries are not in
tool or charger, always place protective cap
onto end of battery pack.
Protective cap,
guards against terminal shorting.
INDICATOR
LIGHT
CHARGER
BATTERY
PACK
PROTECTIVE
CAP

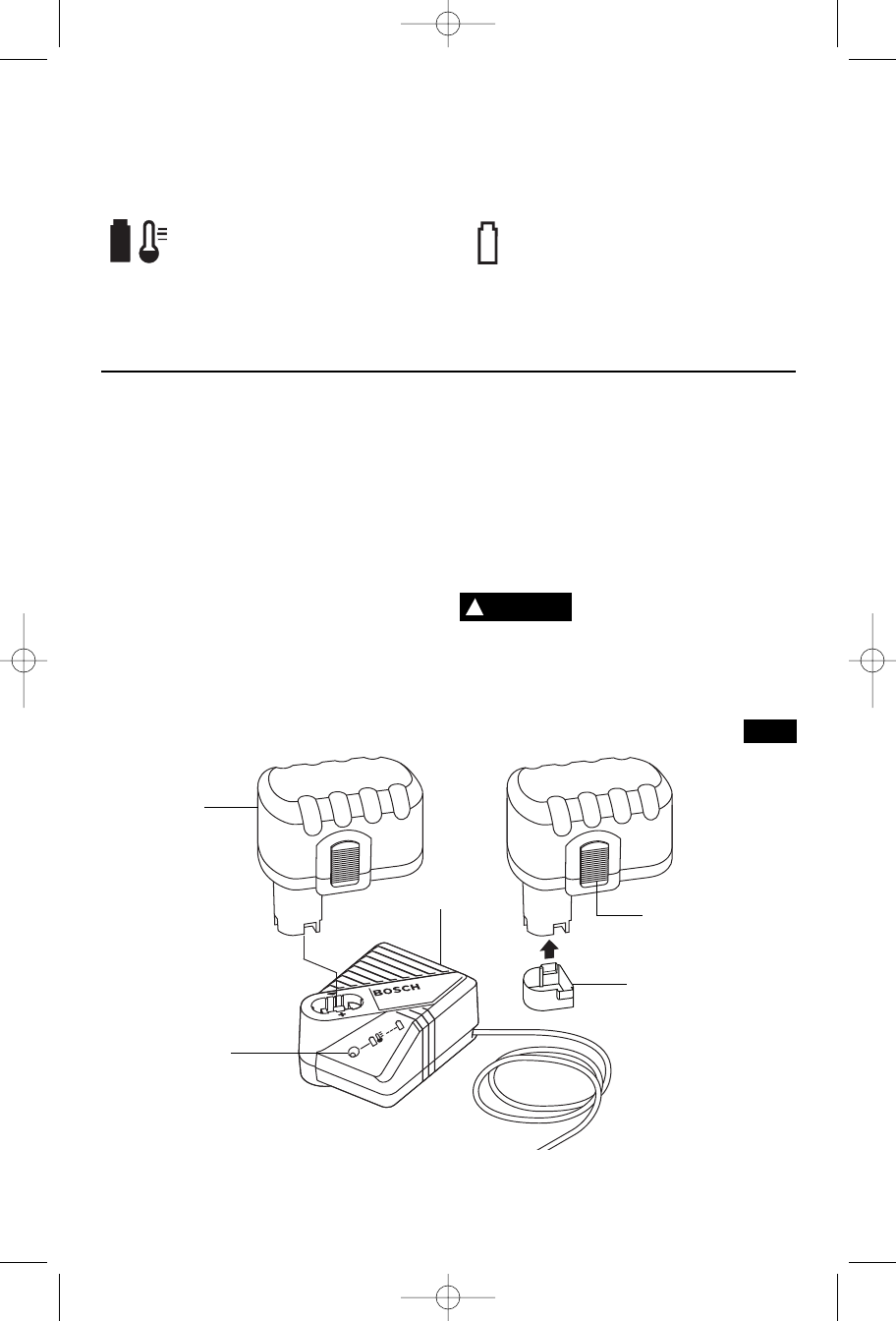

FIG. 12
BATTERY PACK
RELEASE TABS
!
WARNING
