-8-
Model number 15614 15618
Voltage rating 14.4 V 18 V
No load speed 1 n
0
0-450/min n
0
0-500/min
No load speed 2 n
0
0-1900/min n
0
0-2000/min
Impact rate 29,000 BPM 31,000 BPM
Maximum Capacities
Chuck size
1/2" 1/2"
Screw sizes #16 x 3" #14 x 4"
Mild metal 1/2" 5/8"
Hard wood 1-1/4" 1-5/8"
Soft wood 1-3/4" 2"
Battery pack BAT040 BAT025, BAT026,
& BAT140 BAT180 & BAT181
Charger BC001-6 & BC016
BC003, 4, 6, & BC016
BC130 & BC230 BC130 & BC230
Voltage rating
120 V 60 Hz
120 V 60 Hz
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
Functional Description and Specifications
Disconnect battery pack from tool before making any assembly,
adjustments or changing accessories
. Such preventive safety measures
reduce the risk of starting the tool accidentally.
!
WARNING

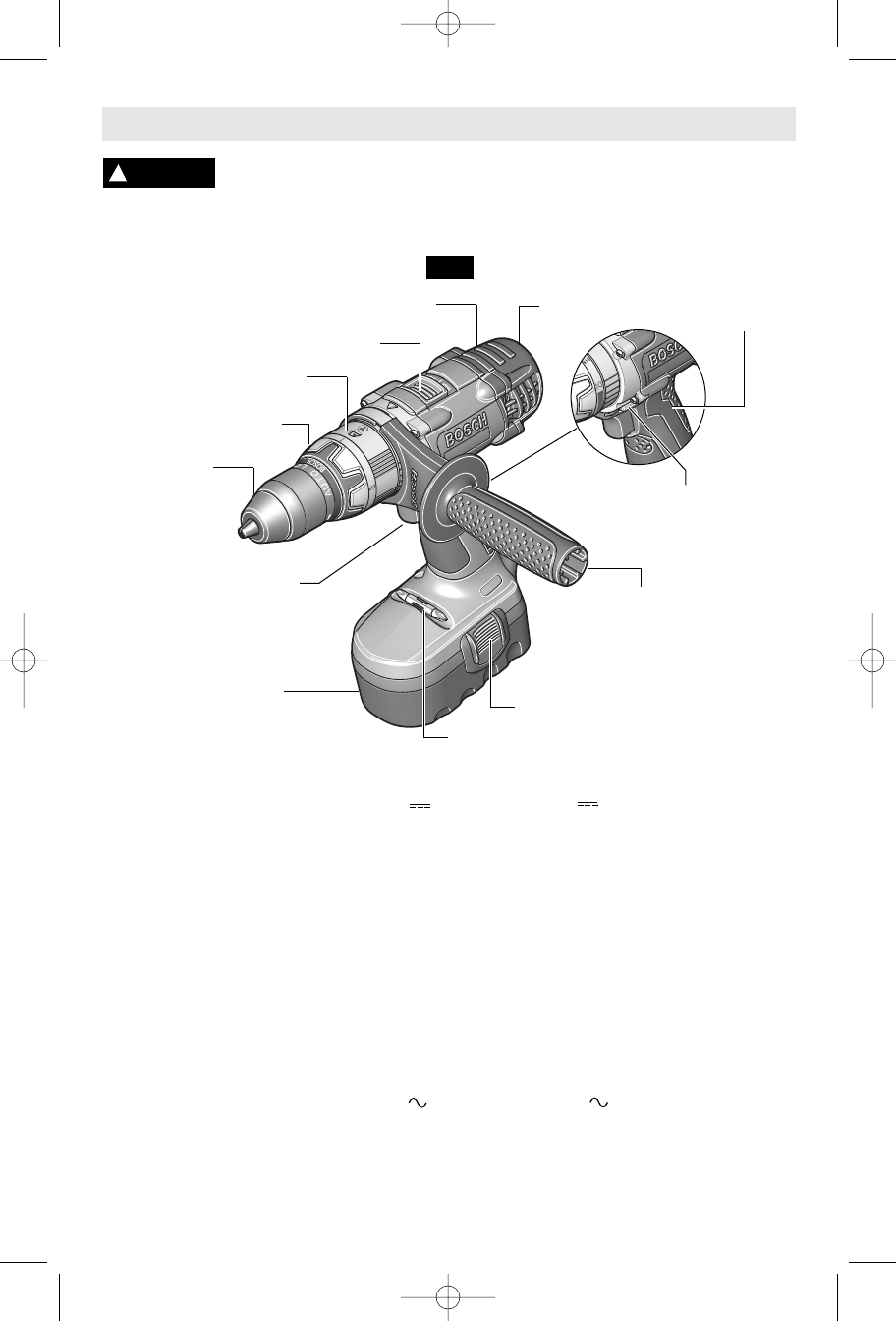

Cordless Hammer Drills
FIG. 1
BATTERY PACK
BATTERY RELEASE TABS
BRUSH COVER
VENTILATION OPENINGS
GEAR SHIFTER
RUBBERIZED
GRIP
BIT STORAGE AREA
KEYLESS
CHUCK
ADJUSTABLE CLUTCH
MODE SELECTOR RING
VARIABLE SPEED
TRIGGER SWITCH
AUXILIARY
HANDLE
FORWARD/REVERSING
LEVER & TRIGGER LOCK
