DUST COLLECTION WHILE
EDGE FORMING
The RA1170 dust extraction hood (optional
accessory) is used for dust collection when

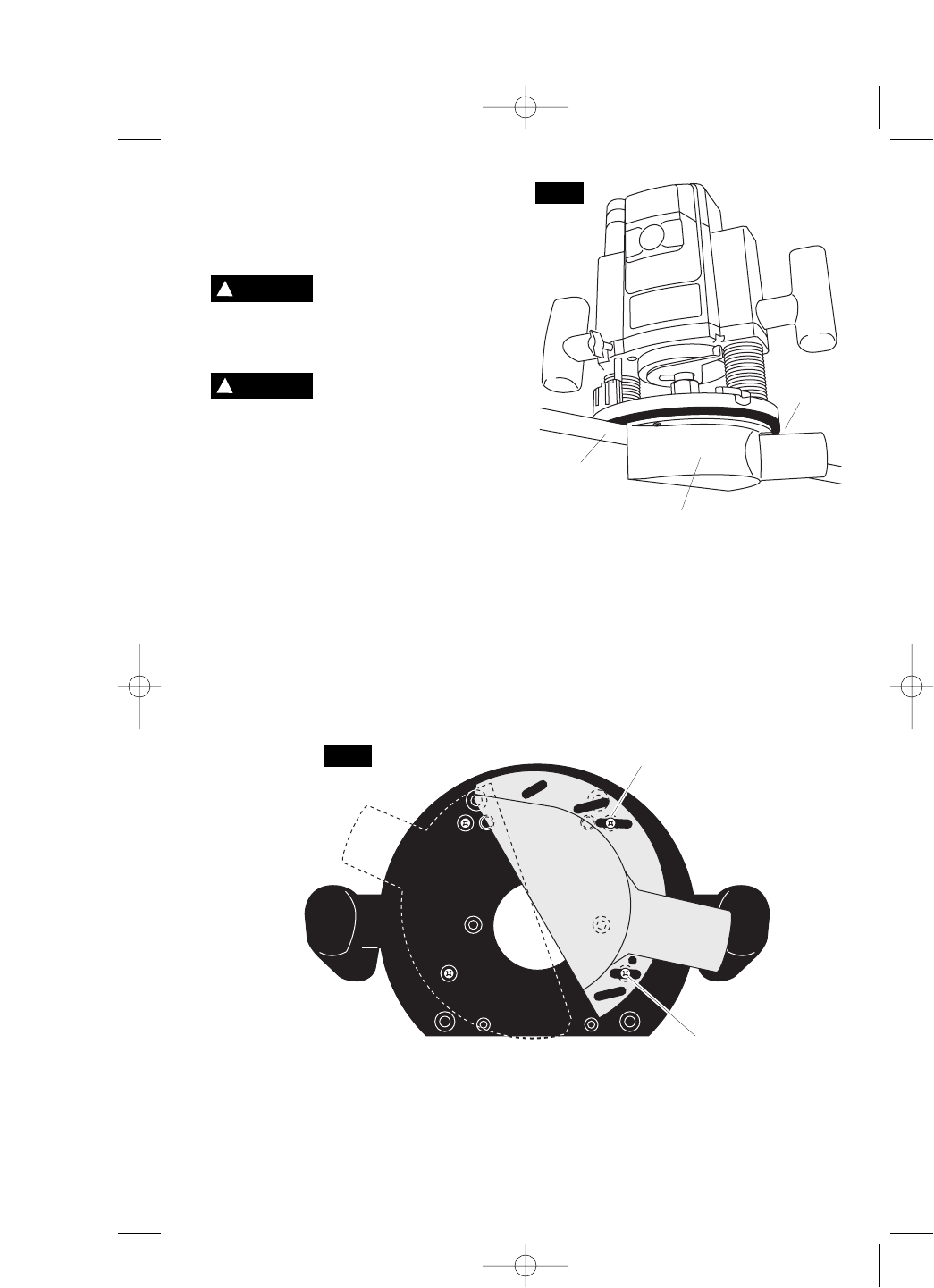

edge-forming (Fig. 15).
Read and understand
these instructions and tool
manual for use of these accessories.
Do not reach in area of the bit while the
router is ON or plugged in.
To avoid entangling hoses,
do not use this dust
extraction hood at the same time as any
other dust extraction hood.
ATTACHING DUST EXTRACTION HOOD
You can attach the hood in several places
according to your needs or preferences. This
hood is attached using two of the screw
holes on the router base that are used to
attach the router’s sub-base. Choose the
desired location for the hood. Loosen and
take out the two screws from the router base
and attach the dust extraction hood — over
the router’s sub-base — using the screws
provided with the hood. Securely tighten the
screws (Fig. 16).
The dust extraction hood itself is sized to
accept 35mm vacuum hoses. Also included
is the VAC002 adapter that will connect the
hood to 1-1/4’’ and 1-1/2’’ vacuum hoses.
