Functional Description and Specifications
Disconnect the plug from the power source before making any assembly,
adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
!
WARNING

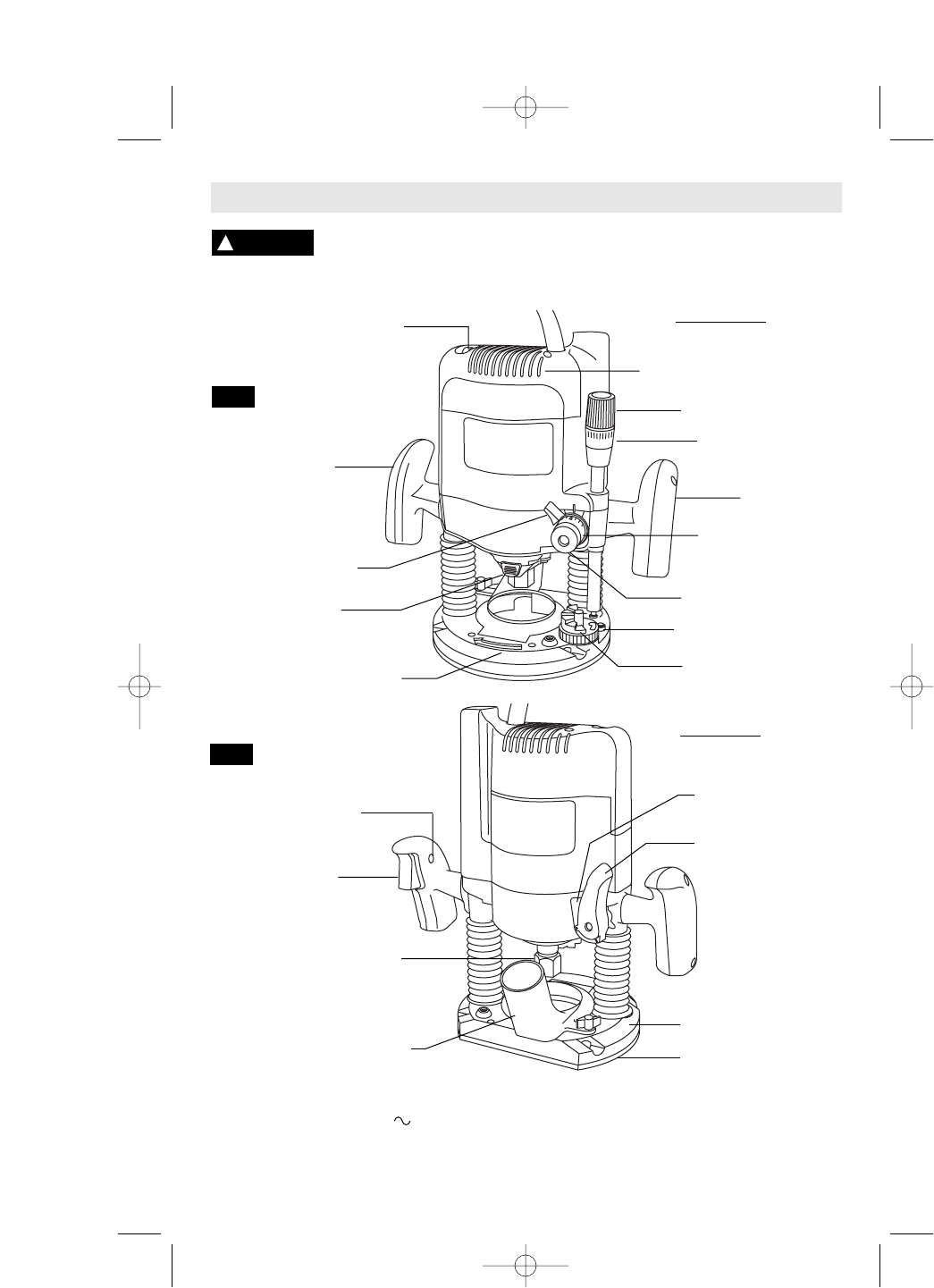

FIG. 1
FIG. 2
VENTS
SPEED
CONTROL DIAL
BASE
RIGHT HANDLE
DIRECTION OF BIT
ROTATION
LEFT
HANDLE
FINE ADJUSTMENT KNOB
“LOCK-ON”
BUTTON
ON/OFF TRIGGER
SWITCH
PLUNGE LOCK
LEVER
SPINDLE LOCK
SPRING DEFEAT BUTTON
BACK VIEW
FRONT VIEW
Router
Model number: 1619EVS
Voltage rating: 120 V 50 - 60Hz
Amperage rating: 15 A
No load speed: n
0
8,000-21,000/min
Collet capacities: 1/4", 3/8", 1/2", 8mm
COARSE ADJUSTMENT
INDICATOR
COARSE ADJUSTMENT KNOB
DEPTH STOP TURRET
COLLET
CHUCK
DUST EXTRACTION HOOD
COARSE ADJUSTMENT
LOCK
PLUNGE LOCK
OVERRIDE LEVER
FINE ADJUSTMENT
INDICATOR
SUB-BASE
