Basic Saw Operations
Detent Override
To Engage:

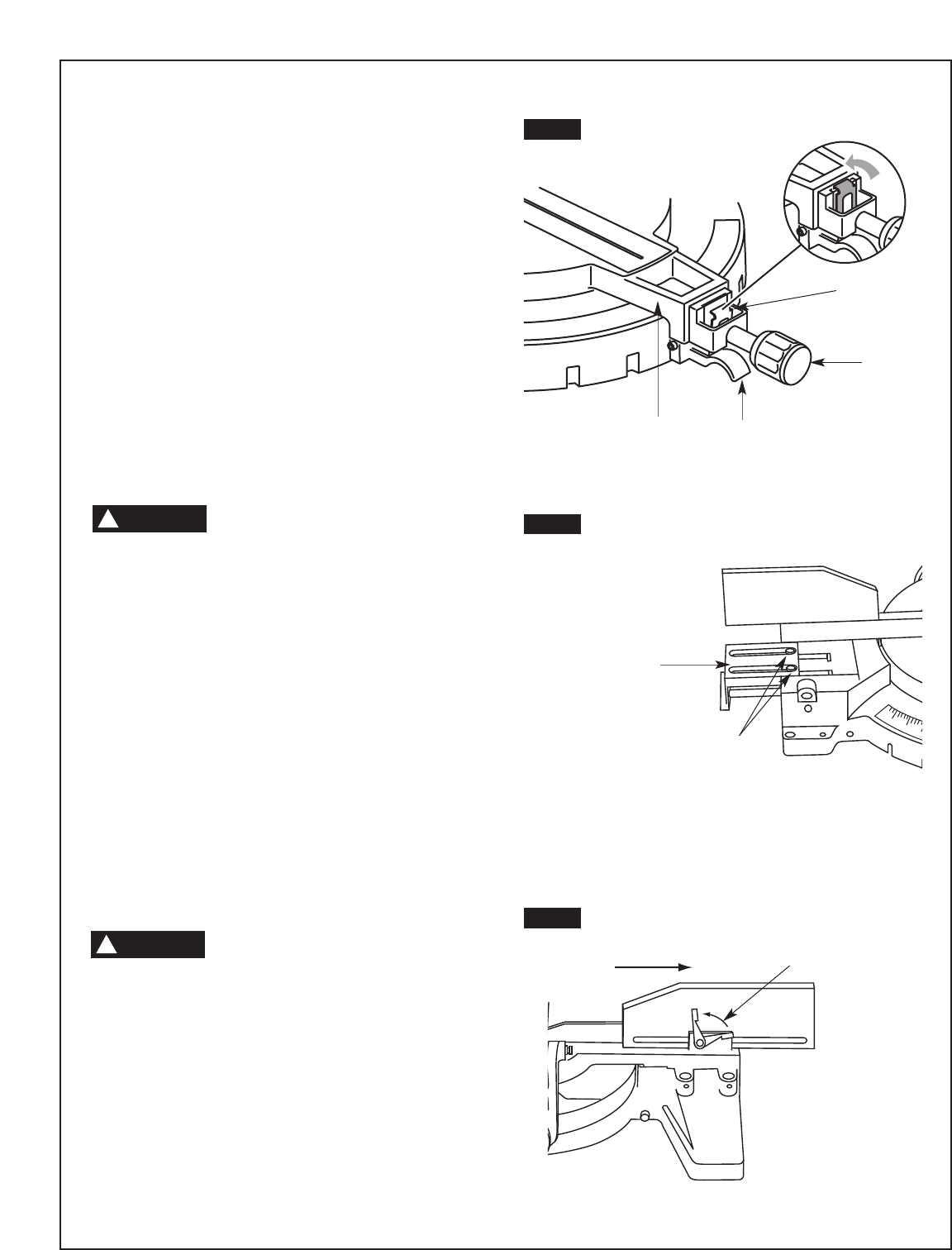

1. Lift the miter detent trigger 1 (Figure 24).
2. Push the detent override clip
2 forward and latch in place
over edge. Release miter detent trigger
1.
3. Move miter arm
3 to any position on the miter scale.
4. Lock the miter lock knob
4 to retain miter position.
To Disengage:
5. Loosen miter lock knob 4 and lift the miter detent trigger
1 to release the detent override clip 2.
Sliding Base/Fence Extension
Extend and use sliding base/fence when
making severe bevel, severe miter or
compound cuts to provide sufficient (minimum 6”) spacing
from hand to saw blade.
Sliding Base:
1. Remove hex wrench from storage position on left rear
leg.
2. Loosen two (2) socket cap screws
5 in sliding base
channel with the 6 mm hex wrench provided (Figure 25).
3. Extend sliding base/fence
6 to the desired position.
4. Tighten screws. Store hex wrench.
Sliding Fence:
1. Unlock the fence locking lever 7 (Figure 26).
2. Slide fence to proper position
8.
3. Relock fence in place.
During transportation, sliding base and
fence should always be secured in the full
in position.
50
45
40
FIG. 24
FIG. 25
1
2
4
3
5
6
FIG. 26
7
8
WARNIN
G
!
CAUTION
!
