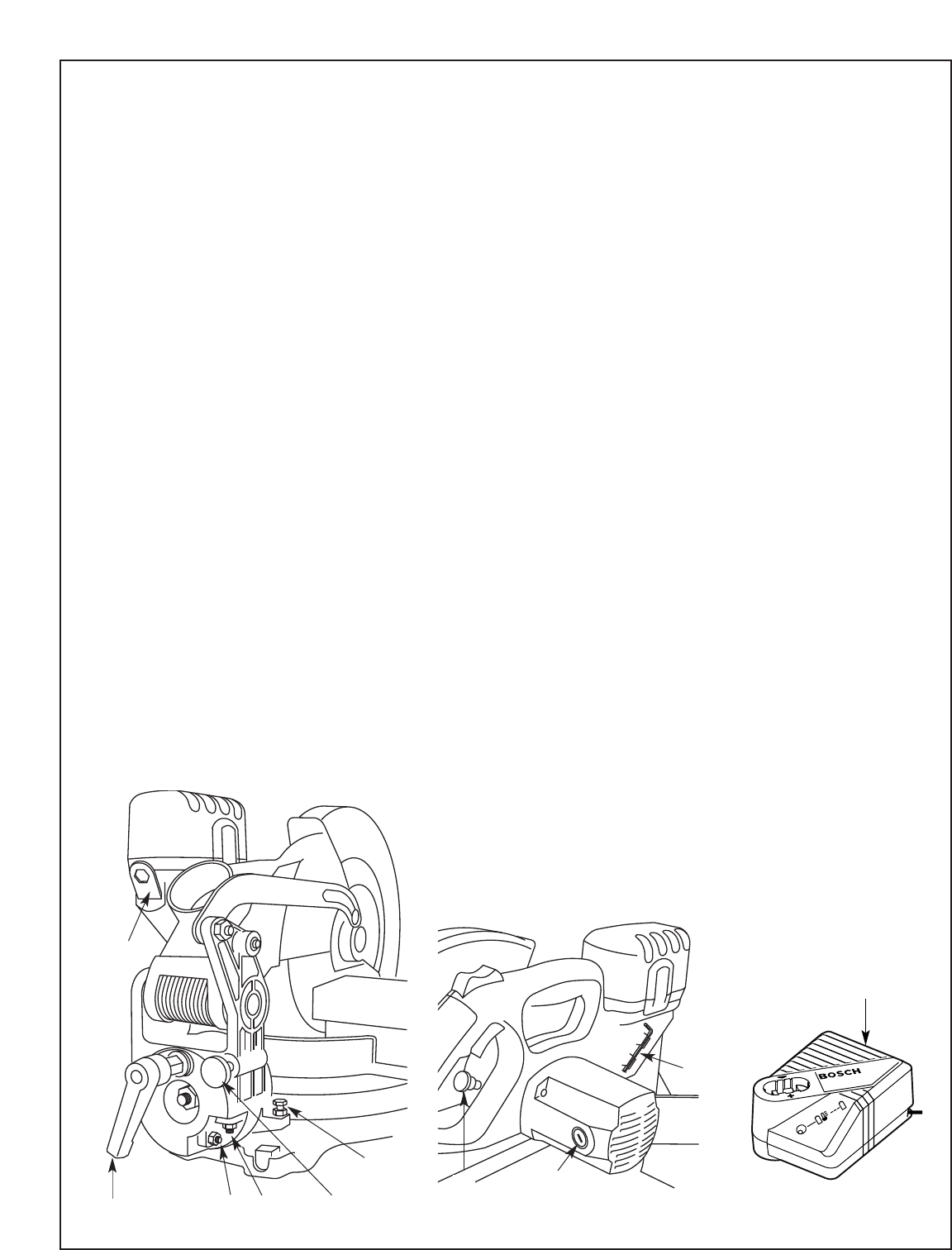

12. Miter Lock Knob
The miter lock knob locks the miter saw table at any desired
miter angle.
13. Miter Detent Trigger
The trigger engages or releases the table from the detent.
14. Miter Scale
This scale is cast in on the base of the saw. Allows you to
read the miter angles easily.
15. Detents
There are nine (9) miter detents for fast and accurate miter
cuts of common miter angles.
16. Table
Sits in base, provides workpiece support, rotates for desired
miter cuts and rotates the head assembly.
17. Quick Action Clamp Positions
There are six (6) positions around the base for the quick
action clamp.
18. Base
Provides working surface to support workpiece.
19. Accessory Extension/Stop Holes
Machined holes that accept the extension/stop accessory.
20. Workpiece Clamp (Standard Equipment)
Provides fast clamping of workpiece.
20a. Quick Action Clamp (Optional Accessory)
Provides fast clamping of workpiece.
21. Sliding Base
This provides extra support and clamping area for compound
miter cuts.
22. Sliding Fence
Provides maximum height support for the workpiece and
slides to left for easy compound cuts.
23. Lock Pin
The compound miter saw is equipped with a lock pin used to
lock the head assembly in the lower position.
24. 33.9º Bevel Stop (Crown Molding)
Adjustable stop for quick and accurate 33.9º cuts.
25. Chip Deflector
This protects against large chips from entering the upper
guard.
26. Lower Guard Actuation Link
Allows for smooth movement of the lower guard.
27. Upper Blade Guard
Covers upper portion of the blade.
28. Blade Wrench
Used for tightening/loosening blade and adjusting bevel stops.
Blade wrench is stored in the handle housing.
29. Bevel Detent Pin (Crown Molding Setting)
Allows you to easily move the head assembly to the bevel
angle of 33.9°.
30. Dust Collection Bag
Attaches to the dust port and collects dust to help keep work
area clean.
31. Bevel Lock Handle
The bevel lock handle locks the head assembly at a desired
bevel angle. Handle ratchets for use in tight spaces.
32. 45° Bevel Stop
Adjustable stop for a quick and accurate 45° bevel index.
33. 0° Bevel Stop
Adjustable stop for a quick and accurate 0° bevel index.
34. Bevel Scale
This scale is cast in on the saw. Allows you to read the bevel
angles easily.
35. Hex Wrench (6 mm)
Used to adjust sliding base and fence. Hex wrench is stored
in the left rear base.
36. Brush Caps
These caps keep the motor brushes in position and provide
easy access for inspecting and replacing brushes.
37. 18 V or 24 V Battery Pack
Rechargable battery pack that power the saw.
38. Hex Wrench (3 mm)
Used to adjust the 0° and 45° bevel stop screws. Hex wrench
is stored in the handle.
39. Charger
Charges the battery pack which powers the tool.
FOR CONTINUATION OF ENGLISH SEE PAGE 26
