Jam Clearing
Disconnect the tool from the air source
before attempting to clear a jammed nail.
Such precautionary safety measures reduce the risk or
unintentional tool operation.
If a nail becomes jammed in the nosepiece, follow these
instructions to remove the jammed nail:
1.Release the trigger.
2.Disconnect the air supply from the tool.
3.Remove nails from the magazine as described in “Nail
Unloading.”
4.Remove the nail, using pliers if necessary.
5.Reinsert nails into the magazine as described in “Nail
Loading”.
6.Reconnect air supply as described in “Connecting Air
Supply”.
NOTE: If the driver blade does not return to its up position,
disconnect air supply and contact a BOSCH factory service
center or authorized BOSCH service station.
NOTE: If nails continue to jam frequently in the nose piece,
contact BOSCH service center for repair.

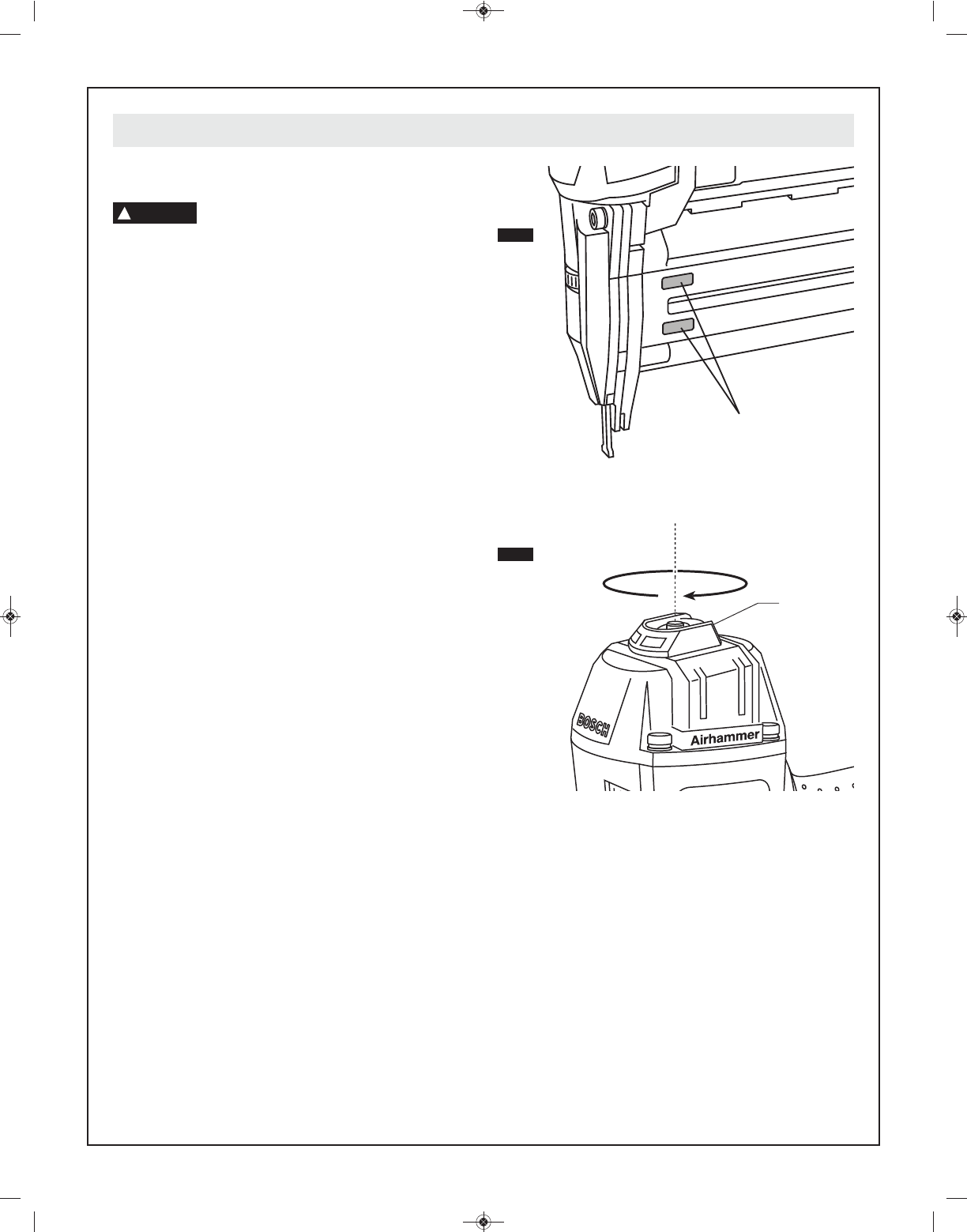

Nail Indicator
The red indicator bars are used to show when the tool
needs to be reloaded, figure 13. When the tool is loaded
with a nail strip, the red indicator bars will no longer be
visible in the indicator window. As the nail strip is
comsumed, the red indicator bars will start to become
visible. The tool should be reloaded when the red indicator
bar is half way exposed in the indicator window.
Adjustable Exhaust Deflector
This tool has an adjustable exhaust deflector that allows the
exhaust air to be blown away from user or workpiece,
figure 14.
Operation
!
WARNING
Nail Indicator
FIG. 13
FIG. 14
Adjustable
Exhaust
Deflector
