1
2
BATTERY PACK
RELEASE BUTTON
BATTERY PACK
You will extend the life of your bits and do
neater work if you always put the bit in
contact with the work before pulling the
trigger. During the oper a tion, hold the tool
firmly and exert light, steady pressure. Too
much pressure at low speed will stall the tool.
Too little pressure will keep the bit from
cutting and cause excess friction by sliding
over the surface. This can be damaging to
both tool and bit.
$!#
The trigger controlled variable speed feature
will eliminate the need for center punches in
6+8':/4-!/69
Set Forward/Reversing lever to the center (off
position). Slide charged battery pack into the
housing until the battery pack locks into
position (Fig. 10).
Your tool is equipped with a secondary locking
latch to prevent the battery pack from
completely falling out of the handle, should it
become loose due to vibration.
To remove the battery pack, press the battery
pack release button and slide the battery pack
forward (Fig. 11).
Press the battery pack release button again
and slide the battery pack completely out of
tool housing (Fig. 11).
-11-
When the trigger switch is released it
activates the brake to stop the chuck quickly.
This is especially useful in the repetitive
driving and removal of screws.
"!$!
Your tool is also equipped with a light that turns
on automatically when the switch is activated,
for better visibility when drilling/driving (Fig. 1).
!
5*+2 542?

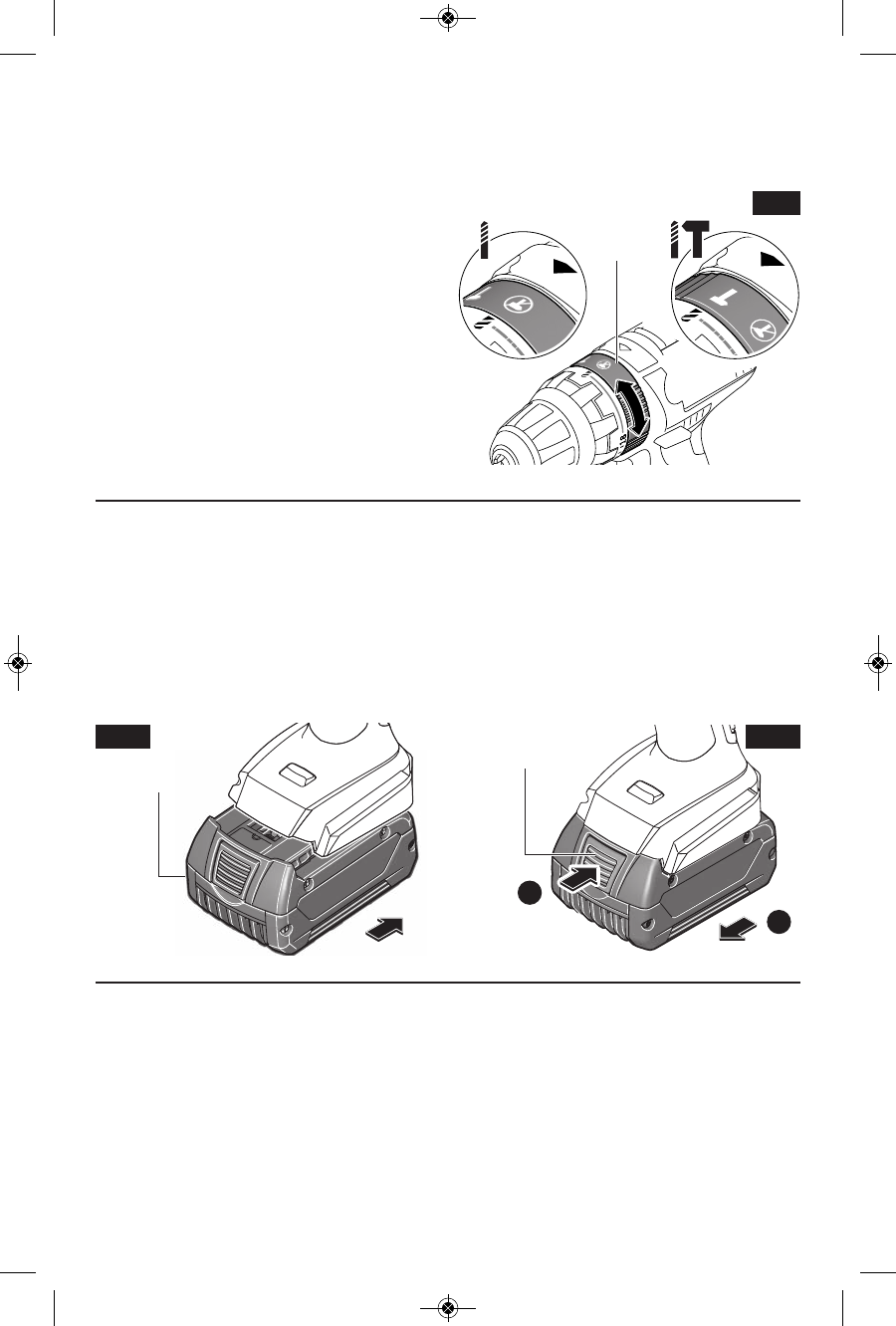

The selector ring allows the tool to be set for
various drilling/hammer drilling applications.
Rotate the selector dial right or left
depending on the below applications (Fig. 9).
Drill only action: For drilling in woods, metals,
plastics or other non concrete materials.
Drill with hammer action: For drilling in
concrete, asphalt, tile or other similar hard
materials. The hammer drill position overrides
the clutch for hammer drilling.
MODE
SELECTOR
RING
FIG. 9
FIG. 10 FIG. 11
