FP209800
3
2. If repair or replacement of cord or
plug is necessary, do not connect
grounding wire to either flat blade
terminal. The wire with insulation
having an external surface that is
green (with or without yellow stripes)
is the grounding wire.
Never connect
green (or green and
yellow) wire to a live terminal.
3. Check with a qualified electrician or
serviceman if grounding instructions
are not completely understood, or if in
doubt as to whether product is
properly grounded. Do not modify
plug provided; if it will not fit outlet,
have proper outlet installed by a
qualified electrician.
Overheating, short
circuiting and fire damage will result
from inadequate wiring, etc.
Operation
Definition of Terms
ON / OFF Switch ( I / O ) - Push switch
to the ON ( I ) position to turn
compressor on. Push switch to the OFF (
O ) position to turn compressor off. This
switch should be in the OFF ( O )
position when connecting /
disconnecting power cord from
electrical outlet or when changing tools.
Pressure Switch (located internally)-
When the compressor is turned ON,
this switch will shut compressor off
automatically when tank pressure
reaches maximum shut-off / cut-out
pressure. If compressor remains on and
air is depleted from tank, this switch
will allow compressor to automatically
restart at the restart / cut-in pressure.
Regulator - The regulator controls the
amount of air pressure released at the
hose outlet. Turning the regulator knob
clockwise (to the right) will increase air
pressure at the outlet. Turning the knob
counter-clockwise (to the left) will lower
air pressure to the outlet. Turning knob
fully counter-clockwise will shut off flow
of air completely.
Pressure Gauges - There are two
gauges located next to the regulator.
These gauges read air pressure in pounds
per square inch (psi) The larger gauge
shows pressure at the outlet. Make sure
this gauge reads ZERO (by adjusting the
regulator) BEFORE changing air tools or
disconnecting hose from outlet. The
small gauge shows pressure in the tank
indicating compressor is building
pressure properly.
ASME Safety Valve - This valve
automatically releases air if the tank
pressure exceeds the preset maximum.
Handle - Designed to move the
compressor.
Drain Valve - This valve is located on
the bottom of the tank. Use this valve
to drain moisture from the tank daily
to reduce the risk of corrosion.
LUBRICATION
This is an oilless product and
DDOOEESS
NNOOTT
require lubrication to operate.
BEFORE FIRST STARTUP
BREAK-IN PROCEDURE
(Complete this procedure before using
compressor for the first time. Once
completed, it is not necessary to repeat.)
1. Turn regulator knob fully clockwise
(to the right) to open air flow.
2. Do not
attach a hose or any other
fitting to the compressor.
3. Turn on/off switch to OFF position.
4. Plug in power cord.
5. Turn on/off switch to ON position.
Allow compressor to run for 5 minutes.
6. Turn on/off switch to OFF position.
7. Unplug power cord.
BEFORE EACH STARTUP
OPERATING PROCEDURE
1. Turn switch to OFF ( O ) position and
plug in power cord.
2. Turn regulator knob
counterclockwise to close air flow.
3. Turn switch to ON ( I ) position.
4. Compressor will build to maximum
pressure and shut off.
5. With hose attached to outlet of
compressor, attach tire chuck or
other tool to open end of hose.
www.chpower.com
Figure 4
ON/OFF Switch
Drain Valve
Safety Valve
Pressure
Gauge
Handle

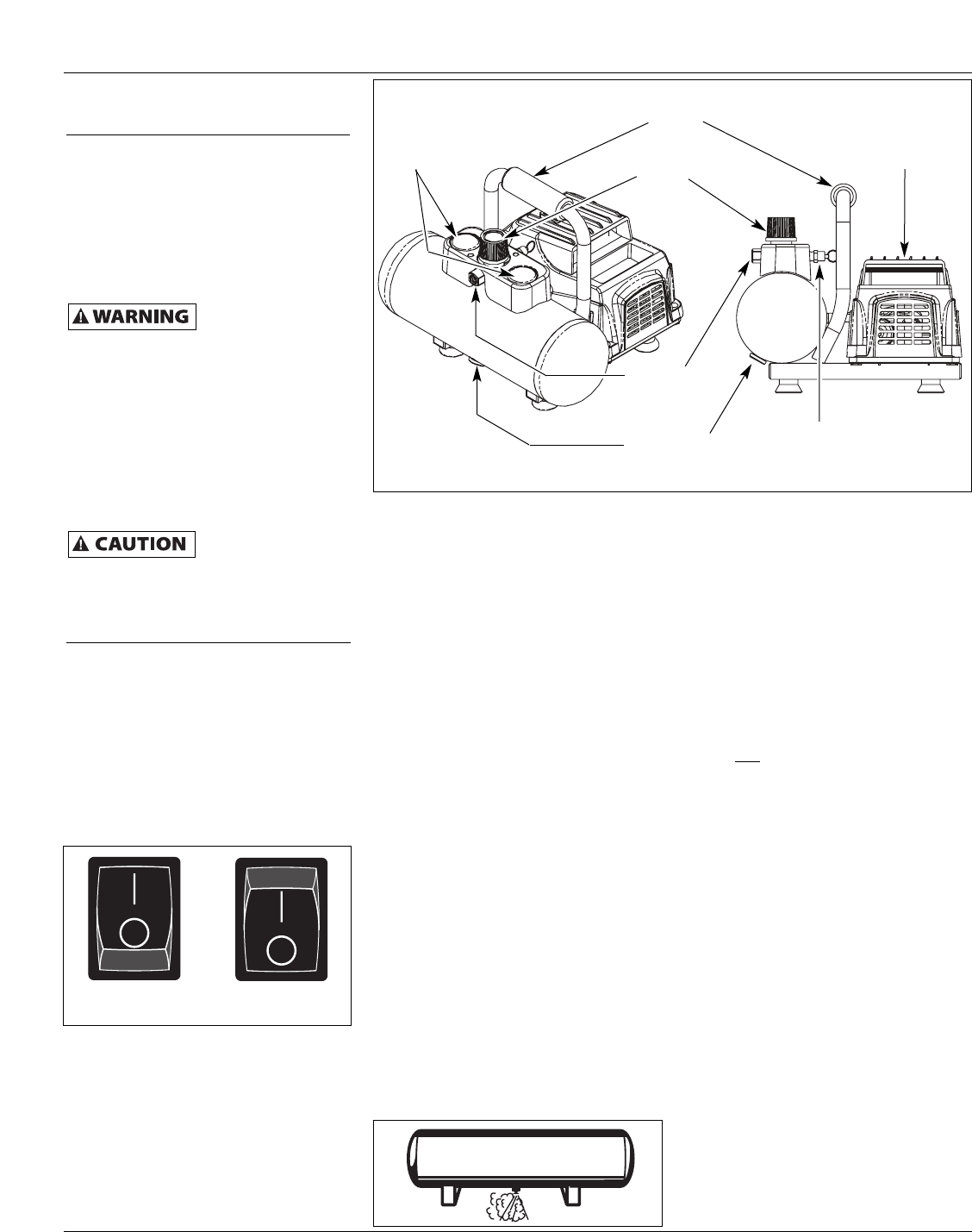

Figure 2 - Unit Identification
Regulator
Knob
Air outlet
OFF Position
Figure 3
ON Position
Installation
(Continued)
