For replacement parts or technical assistance,
call 1-800-543-6400
Address parts correspondence to:
Campbell Hausfeld
Attn: Customer Service
100 Production Drive
Harrison, OH 45030 U.S.A.
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
Ref.
No. Description Part Number Qty.

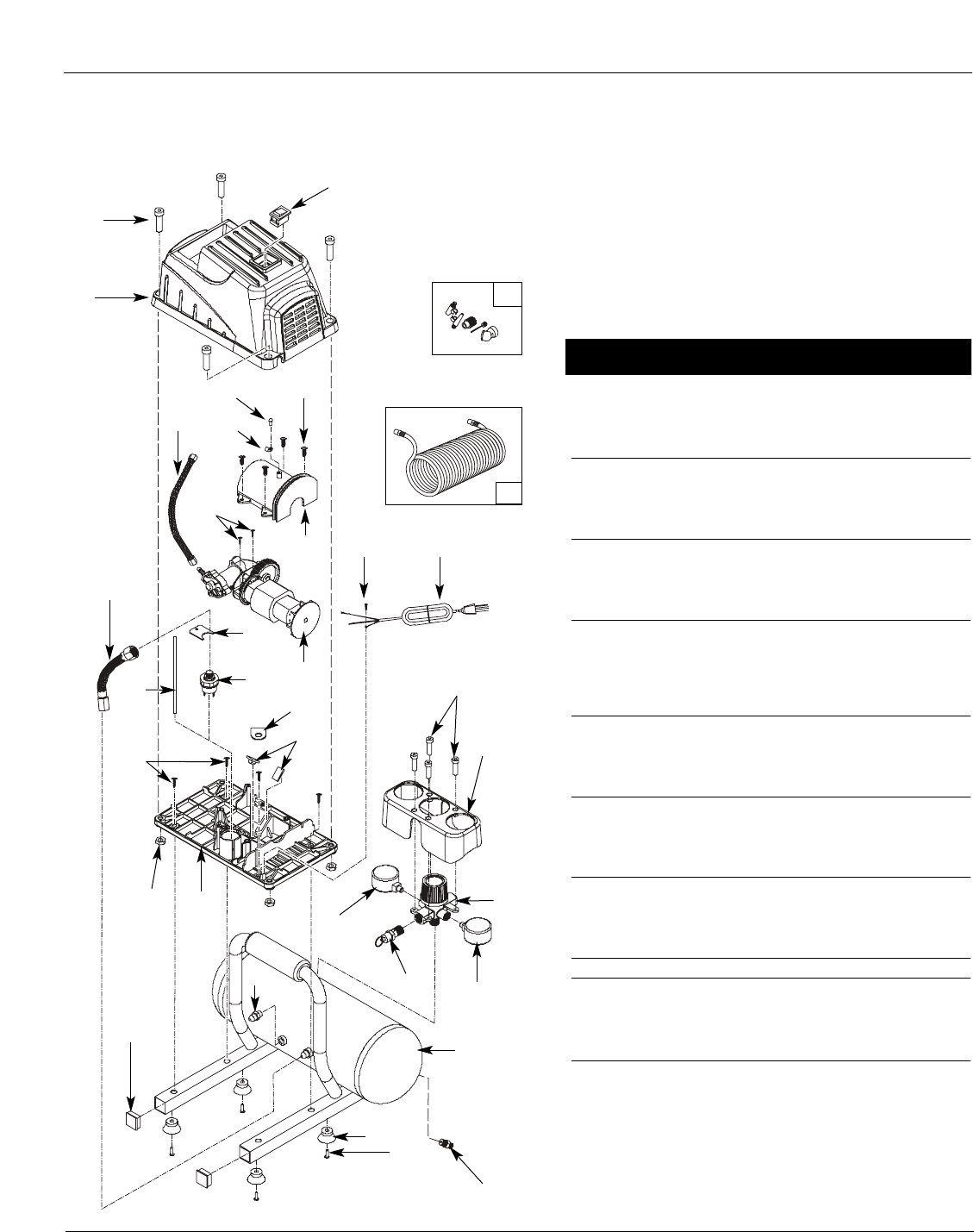

Replacement Parts List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
12a
12b
19a
1 Shroud assembly FP209536AV 1
2 On/off switch FP204824AV 1
3 Screw ▲ 4
4 Manifold Cover ▲ 1
5 Regulator ▲ 1
61
1
/2 in. dia. left gauge FP209528AV 1
71
1
/2 in. dia. right gauge FP209821AV 1
8 Safety valve V-215102AV 1
9 Motor isolator ■ 2
10 Pressure switch FP209530AV 1
11 Check valve FP209532AV 1
12 Power cord FP209534AV 1
12a Ground screw * 1
12b Strain relief — 1
13 Housing screw ◆ 4
14 Nut ◆ 4
15 Drain valve D-1403 1
16 Rubber foot ● 4
17 Foot bolt ● 4
18 Wire (pressure switch
to power switch) FP209523AV 1
19 Pump/motor assembly FP209039AV 1
19a Exhaust tube assembly FP202839AV 1
20 Wire clip FP202823AV 1
21 Screw * 1
22 Motor cover ▼ 1
23 5 piece accessory kit FP204008AV 1
24 25 ft. recoil house MP268100AV 1
25 Plastic base ▼ 1
26 Pressure switch tube assembly FP209535AV 1
27 Tank assembly — 1
28 Platic caps — 4
29 Washered head screw ◆ 2
30 Motor housing Screw ◆ 4
31 Base screw ◆ 4
32 Pressure switch bracket — 1
REPLACEMENT PARTS KITS
▲ Manifold assembly FP209820AV
■ Isolator kit (includes 4) FP209037AV
● Feet kit FP209522AV
◆ Fastener kit FP209041AV
▼ Plastic base & motor cover FP209038AV
* Standard hardware item
— Not available
