Operating Instructions and Parts Manual FP260200
www.chpower.com
Definition of Terms
(Continued)
Motor Protection - If the unit is over
worked, a thermal limiter will shut unit
off. If this happens, switch unit to OFF,
wait 30 minutes to cool, turn ON again
to resume work.
Operation
LUBRICATION
This is an oilless product and DOES NOT
require lubrication to operate.
BEFORE FIRST STARTUP
BREAK-IN PROCEDURE
Complete this procedure before using
compressor for the first time. Once
completed, it is not necessary to repeat.
1. Turn regulator knob fully clockwise
(to the right) to open air flow.
2. Do not attach a hose or any other
fitting to the compressor.
3. Turn ON/OFF switch to OFF ( O )
position.
4. Plug in power cord.
5. Turn ON/OFF switch to ON ( I )
position. Allow compressor to run
for 5 minutes.
6. Turn ON/OFF switch to OFF ( O )
position.
7. Unplug power cord.
OPERATING PROCEDURE
1. Turn switch to OFF ( O ) position and
plug in power cord.
2. Turn regulator knob
counterclockwise to close air flow.
3. Turn switch to ON ( I ) position.
4. Compressor will build to maximum
pressure and shut off.
5. With hose attached to outlet of
compressor, attach tire chuck or
other tool to open end of hose.
6. Adjust regulator to proper pressure
for tool or tire. Operate tool per
instructions.
As air is depleted from the tank by
use of a tire chuck, tool, etc., the
compressor will restart automatically
at its preset “cut-in” pressure. When
a tool is being used continuously,
the compressor will cycle on and off
automatically.
7. Turn switch to OFF ( O ) position,
unplug power cord and drain
tank of air when finished using
compressor.
User - Maintenance
Instructions
Disconnect power source
then release all pressure from
the system before attempting
to install, service, relocate or perform
any maintenance. Service should be
performed by an authorized service
representative.
The compressor should be checked
often for any visible problems and the
following maintenance procedures
should be performed each time the
compressor is used.

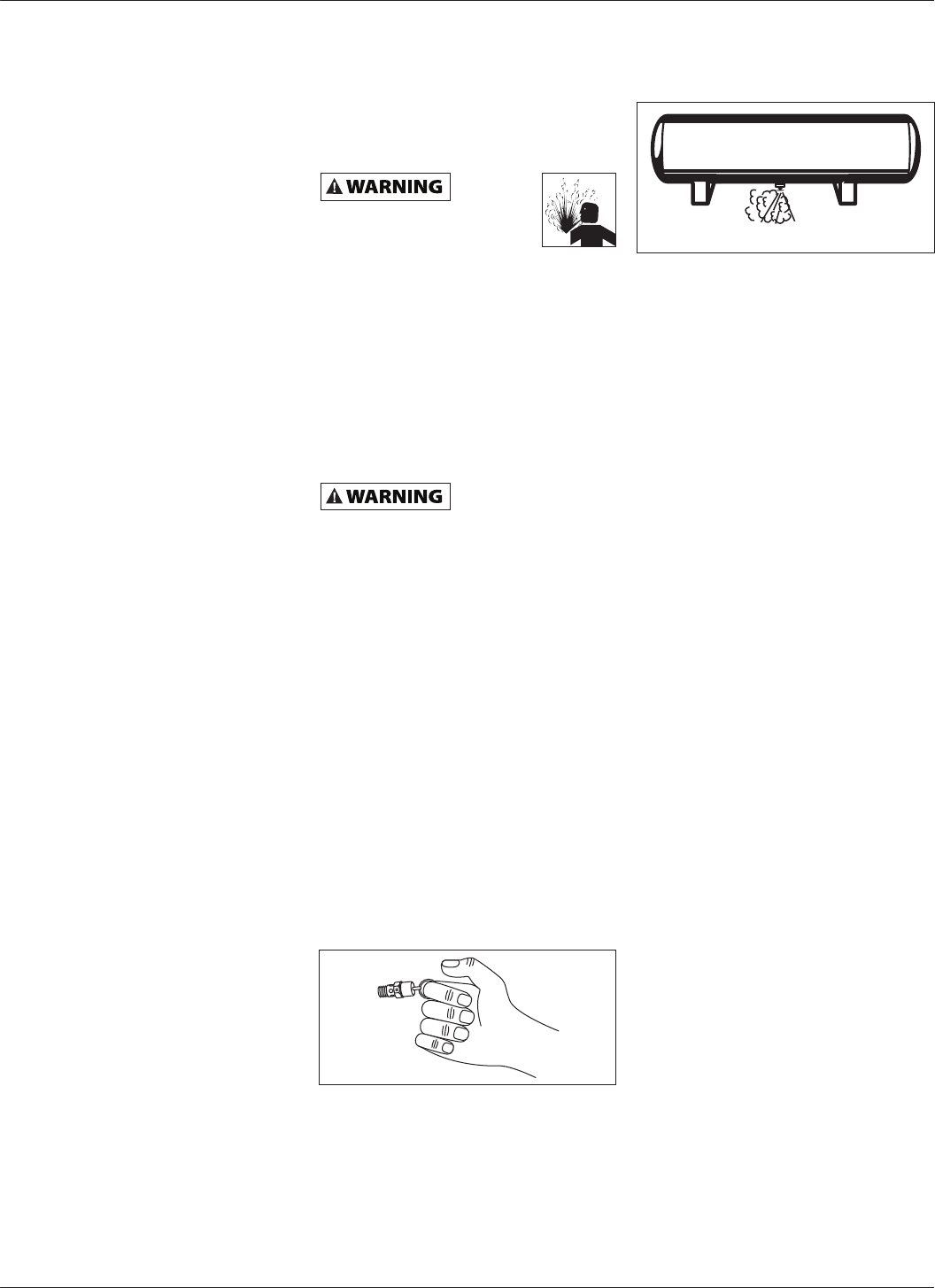

ASME SAFETY VALVE
Do not remove or
attempt to adjust
the safety valve!
Check the safety valve by performing
the following steps:
1. Plug the compressor in and run until
shut off pressure is reached (see
Operating Instructions).
2. Wearing safety glasses, pull the
ring on the safety valve to release
pressure from compressor tank. Use
your other hand to deflect fast-
moving air from being directed
toward your face.
3. The safety valve should close
automatically at approximately
40-50 psi. If the safety valve does
not allow air to be released when
you pull on the ring, or if it does
not close automatically, it MUST be
replaced.
DRAIN TANK
With compressor shut off and pressure
released, drain moisture from tank by
opening drain valve underneath tank.
CLEANING
Turn power OFF and clean dust and dirt
from pump cover, tank, and air lines.
IMPORTANT: Unit should be located as
far from spraying area as hose will allow
to prevent over-spray from clogging air
filter.
END OF OPERATION/STORAGE
1. Turn ON / OFF switch to the OFF ( O )
position.
2. Unplug power cord from wall outlet
and wrap around handle area to
prevent damage when not in use.
3. Wearing safety glasses drain tank of
air by pulling the ring on the safety
valve. Use other hand to deflect
fast moving air from being directed
toward your face.
4. Drain tank of condensation by
opening drain valve on bottom of
tank. Tank pressure should be below
10 psi when draining tank.
5. Air hose should be disconnected
from compressor and hung open
ends down to allow any moisture to
drain.
6. Compressor and hose should be
stored in a cool, dry place.
Figure 6
Figure 5
