Front Panel Description
Front Panel Description
The front panel of your residential gateway provides LED status indicators that
indicate how well and at what state your residential gateway is operating. See Front
Panel LED Status Indicator Functions (on page 96), for more information on front
panel LED status indicator functions.

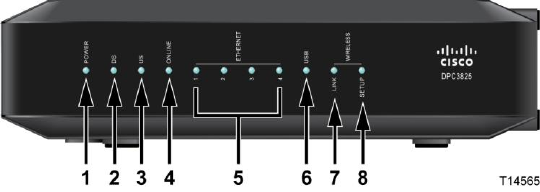

Model DPC3825 shown here
1 POWERON, power is applied to the wireless residential gateway
2 DSON, the wireless residential gateway is receiving data from the cable
network
3 USOn, the wireless residential gateway is sending data to the cable
network
4 ONLINEON, the wireless residential gateway is registered on the
network and fully operational
5 ETHERNET 1 - 4ON, a device is connected to one of the Ethernet ports.
BLINKING indicates that data is being transferred over the Ethernet
connection
6 USBON, a device is connected to the USB port. BLINKING indicates that
data is being transferred over the USB connection
7 WIRELESS LINKON, the Wireless Access Point is operational.
BLINKING indicates that data is being transferred over the wireless
connection. OFF indicates that the wireless access point has been disabled
by the user
8 WIRELESS SETUPOFF (normal condition) wireless setup is not active.
BLINKING indicates the user has activated wireless setup to add new
wireless clients on the wireless network
