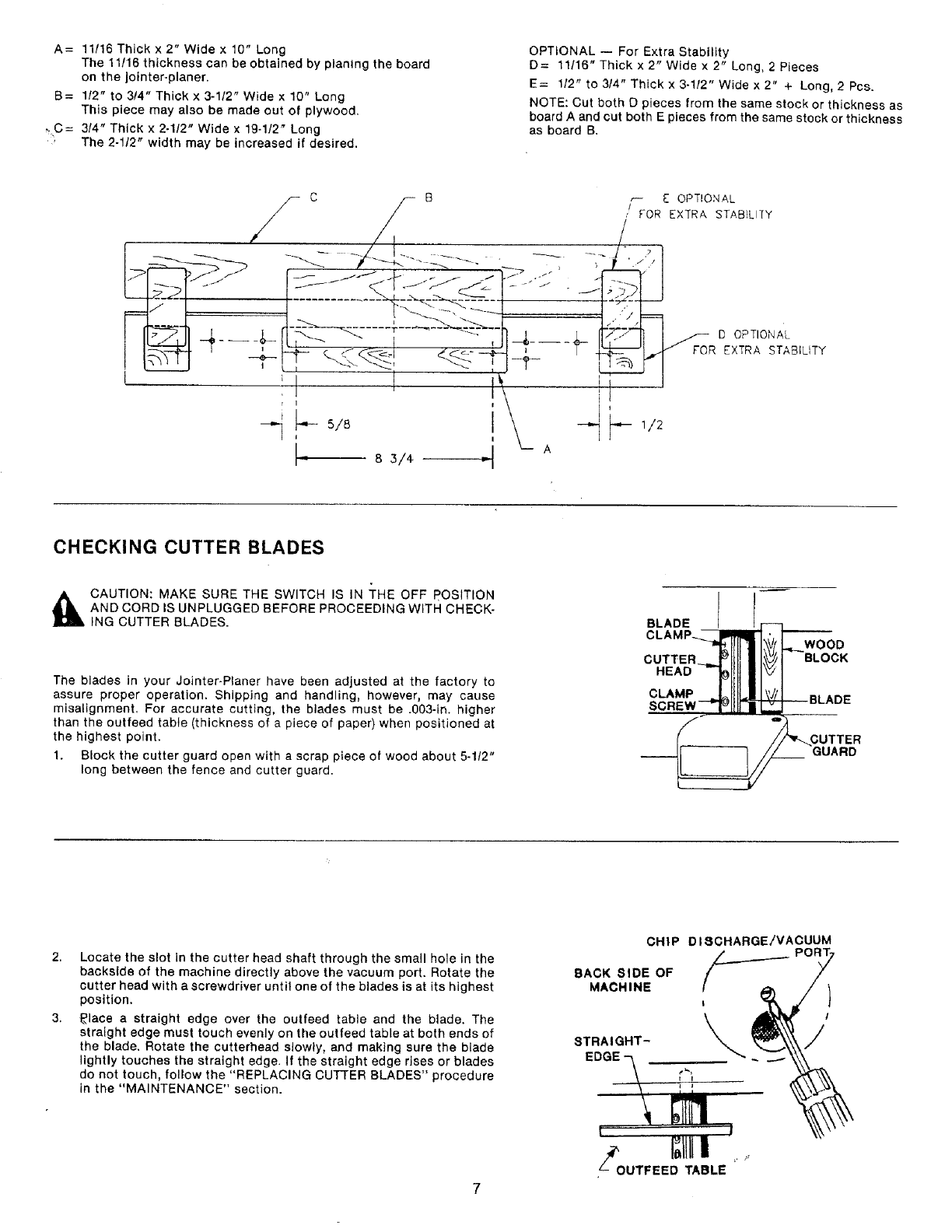

A= 11/16Thickx2"Widex 10"Long
The11/16thicknesscanbeobtainedbyplaningtheboard
onthejointer-planer.
B= 112"to3t4"Thickx3-112" Wide x 10" Long
This piece may also be made out of plywood.
,.C= 3/4" Thick x 2.112" Wide x 19-1/2" Long
' The 2-112" width may be increased if desired.
OPTIONAL -- For Extra Stability
D= 11116" Thick x 2" Wide x 2" Long, 2 Pieces
E= 112" to 314" Thick x 3-1/2" Wide x 2" + Long, 2 Pcs.
NOTE: Cut both D pieces from the same stock or thickness as
board A and cut both E pieces from the same stock or thickness
as board B.
C _- B
__/
t .............
r i
J- B 3/4 -
E OPTIONALr--
/
," FOR EXTRA STABILITY
4- -- - <_-- D OPTIONAL
it '
A
CHECKING CUTTER BLADES
_ CAUTION: MAKE SURE THE SWITCH IS IN THE OFF POST ON
AND CORD IS UNPLUGGED BEFORE PROCEEDING WITH CHECK-
ING CUTTER BLADES.
The blades in your Jointer*Planer have been adjusted at the factory to
assure proper operation. Shipping and handling, however, may cause
misalignment. For accurate cutting, the blades must be .O03-in. higher
than the outfeed table (thickness of a piece of paper) when positioned at
the highest point.
1. Block the cutter guard open with a scrap piece of wood about 5-1/2"
long between the fence and cutter guard.
BLADE
CUTTER
HEAD
CLAMP
WOOD
BLOCK
CUTTER
_RD
Locate the slot in the cutter head shaft through the small hole in the
backside of the machine directly above the vacuum port. Rotate the
cutter head with a screwdriver until one of the blades is at its highest
position.
pJaee a straight edge over the outfeed table and the blade. The
straight edge must touch evenly on the outfeed table at both ends of
the blade, Rotate the cutterhead slowly, and making sure the blade
lightly touches the straight edge. If the straight edge rises or blades
do not touch, follow the "REPLACING CUTTER BLADES" procedure
in the "MAINTENANCE" section.
CHIP DISCHARGE/VACUUM
BACK 81DE OF
MACHINE
