ADJUSTMENTS

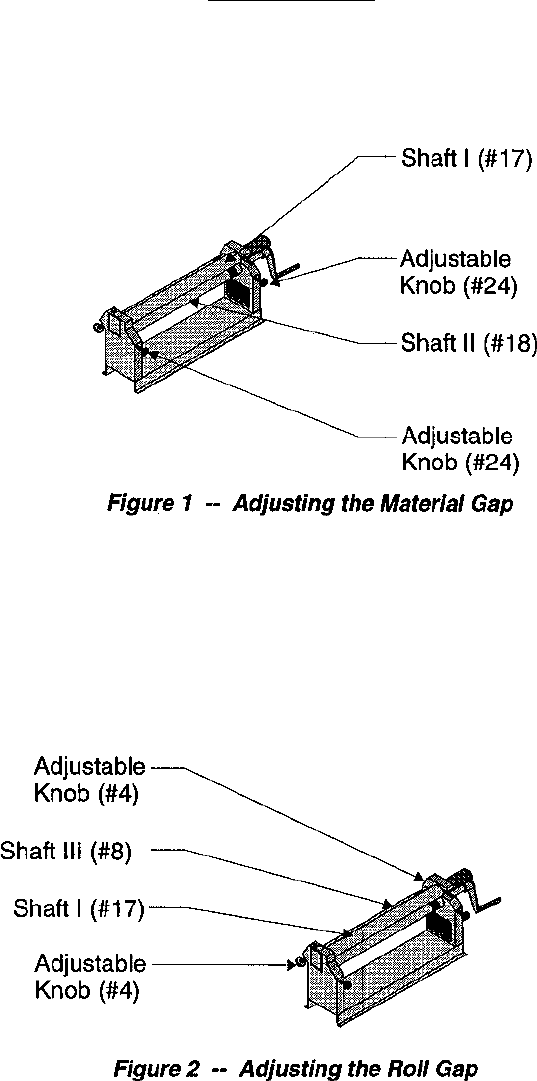

1. To increase the gap between SHAFT I (#17) and SHAFT II (#18) to allow for varying
thickness of materials, screw out the ADJUSTMENT KNOB (#24). To decrease the
gap, screw it in. Make sure to adjust both KNOBS an equal amount. See Figure 1.
2. To increase the gap between SHAFT I and SHAFT III (#8) to increase the diameter of
your rolls, screw out the ADJUSTMENT KNOB (#4). For smaller diameter rolls, screw
the KNOB in. For even rolls, adjust both KNOBS an equal amount. To create cones,
adjust one side more than the other. See Figure 2.
Page 5 -- SKU 36698
