Operating the Nailer
1. Attach the Nailer to the air supply at the Air Inlet (38). Start your compressor and check
the pressure making sure it is set at the recommended 55-95 PSI and not to go over the
maximum 95 PSI.
2. To fire, place the nose of the Nailer on the workpiece. The Nailer should not fire if the
nose is not depressed. Once depressed, gently and briefly squeeze the Trigger (29)
once. Do not fire repeatedly. Nails could bounce off of one another, damaging the work
piece or causing PERSONAL INJURY.
Operation (continued)
Loading Brad Nails
ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN
RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL. Other
people in the work area must also wear ANSI approved impact safety goggles.
Warning! Make sure the Nailer is not attached to the air hose whenever loading the tool.
1. Press the Retaining Spring (58) up and slide the Magazine (60) back.
2. Holding the nailer with the nose pointing slightly down, insert the brad nails into the
Magazine (60), letting the pointed end ride on the rail of the Magazine (60).
3. After the Nails reach the nose of the tool, close the Magazine (60) making sure the
Retaining Spring (58) clicks shut. See

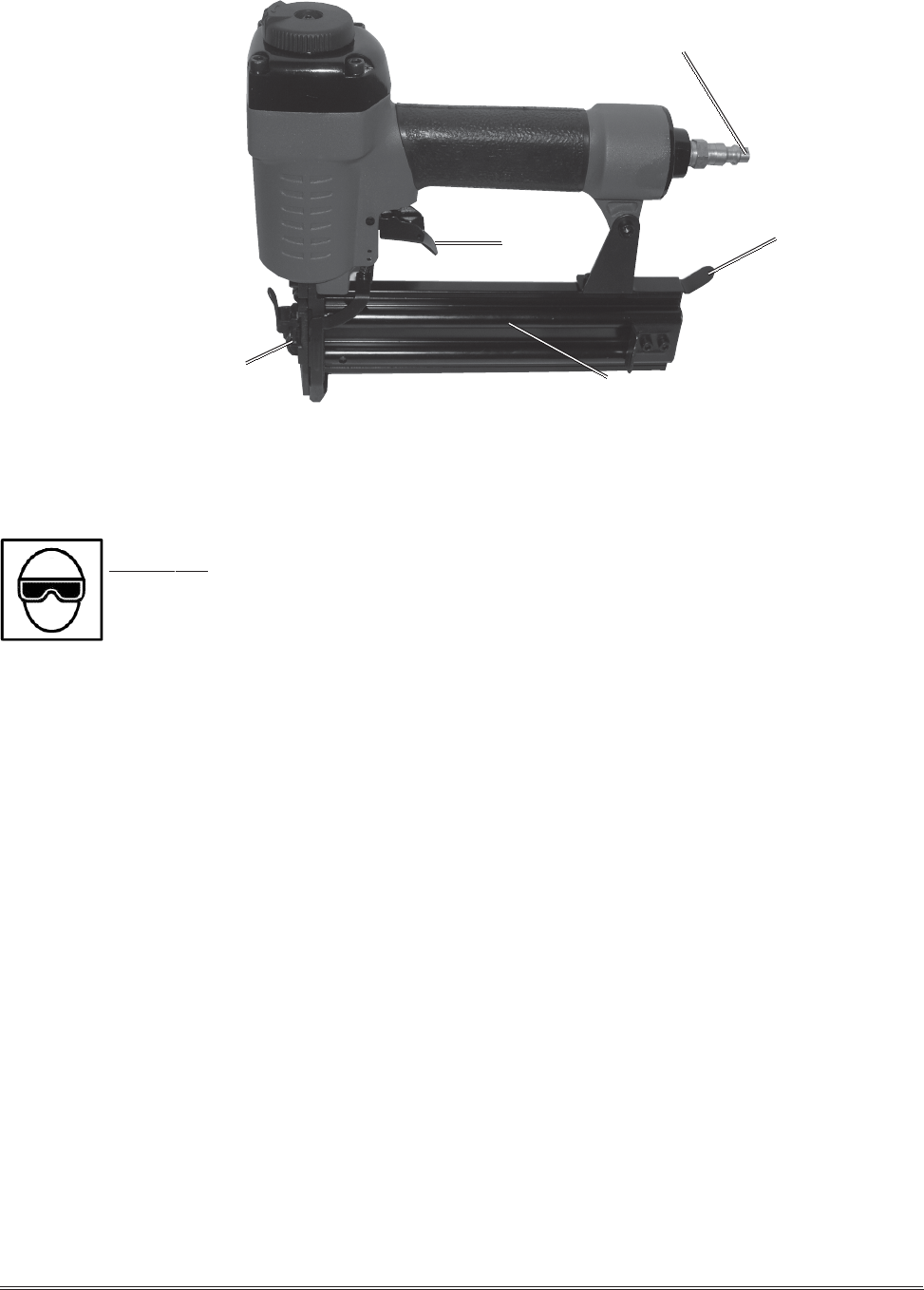

Figure 1
.
Air Inlet (38)
Magazine (60)
Safety
Trigger (29)
Retaining Spring (58)
FIGURE 1
