SKU 47065 For technical questions, please call 1-800-444-3353. PAGE 5
TO EXTEND THE LIFE OF YOUR AIR TOOLS AND EQUIPMENT, it is recom-
mended to install an oiler and water filter in series (available from Harbor Freight

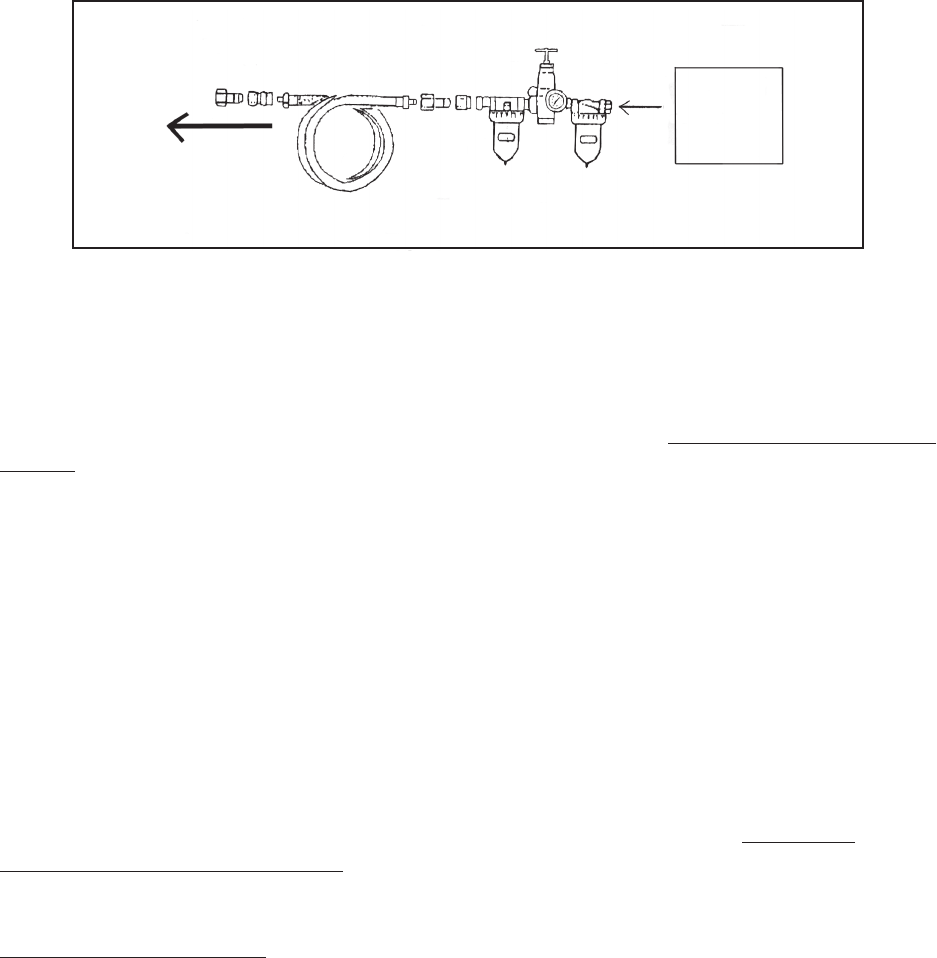

Tools) with the Air Output Line of the Air Compressor. (See Figure B.)
TO
TOOL
AIR
COMPRESSOR
FIGURE B
REV 02/04
OPERATING INSTRUCTIONS
NOTE: For additional references to the parts listed below, refer to the Assembly
Diagrams on pages 10, and 11.
To Check The Oil Level:
1. The Oil Window (20B) is used to determine if oil is needed. The oil level should
always be at the maximum level (red line on the Oil Window). (See Figure C, and
Assy. Diagram B.)
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts Lists on pages 10,
and 11 are included. If any parts are missing or broken, please call Harbor Freight Tools at
the number shown on the cover of this manual as soon as possible.
