SKU 47065 For technical questions, please call 1-800-444-3353. PAGE 6
2. If necessary, add a
premium quality, 30-weight, non-detergent oil
into the Oil Fill
Hole until the level of oil reaches the maximum level as indicated on the Oil
Window (20B). The optimal capacity of the oil reservoir is 30 ounces.
Do not
overfill. Then thread the Dip Stick back into the Oil Fill Hole, being careful not to
strip the plastic threads. (See Figure C, and Assy. Diagram B.)

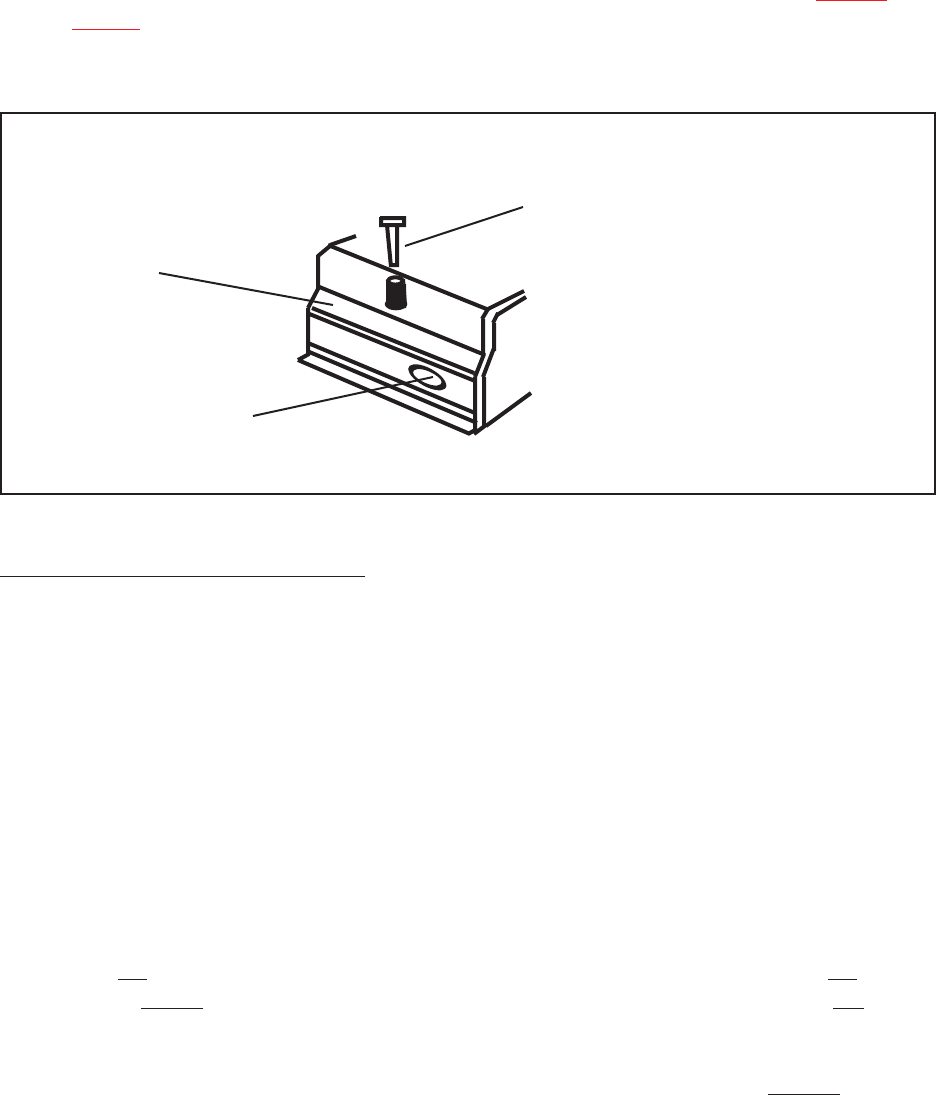

FIGURE C
To Turn The Air Compressor On:
1. Check to make sure the Water Drain Valve (10A) is fully closed.
(See Assy. Diagram A.)
2. Turn the Air Flow Valve (6A) to its “OFF” position. (See Assy. Diagram A.)
3. Connect the air hose (not provided) to the Air Flow Valve (6A) of the Air Com-
pressor. Then, connect the other end of the air hose to the pneumatic tool (not
provided) that is to be used. (See Assy. Diagram A.)
4. Note: Always plug the Power Cord of the Air Compressor into a 115V elec-
trical source (±10% maximum variation).
5. Pull
up on the “ON/OFF” Power Switch (1A) to turn the Air Compressor on.
(Push
down on the “ON/OFF” Power Switch to turn the Air Compressor off.)
(See Assy. Diagram A.)
6. Allow sufficient time for the Tank Pressure Gauge (4A) to indicate
80 PSI before
using the Air Compressor. (See Assy. Diagram A.)
7. Turn the Air Flow Valve (6A) to its “ON” position to allow air to the pneumatic tool.
(See Assy. Diagram A.)
Dip Stick (14B)
Oil Window (20B)
Front Cover (18B)
REV 11/04
