Page 4 For technical questions, please call 1-800-444-3353. SKU 69243
REV 05c, 05g, 07h
Operating Instructions
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
TO PREVENT SERIOUS INJURY
FROM ACCIDENTAL OPERATION:
Turn Line Buttons off before adjusting Level.
1. After removing the Laser from the Carrying
Case, open the battery compartment, insert the
two ‘AA’ Batteries into the battery compartment
according to the polarity symbols shown inside,
and close the battery compartment door.
2. Be sure to set the Laser on as at a surface as
possible. The tri-brack adjustment on the base
of the level can be used to help level the unit.
(Turn each of the knobs to either raise or
lower that corner.) The self-leveling range of
the Laser is within ±
6°
. Use the 2 Vials on
the base to verify that the base is level.

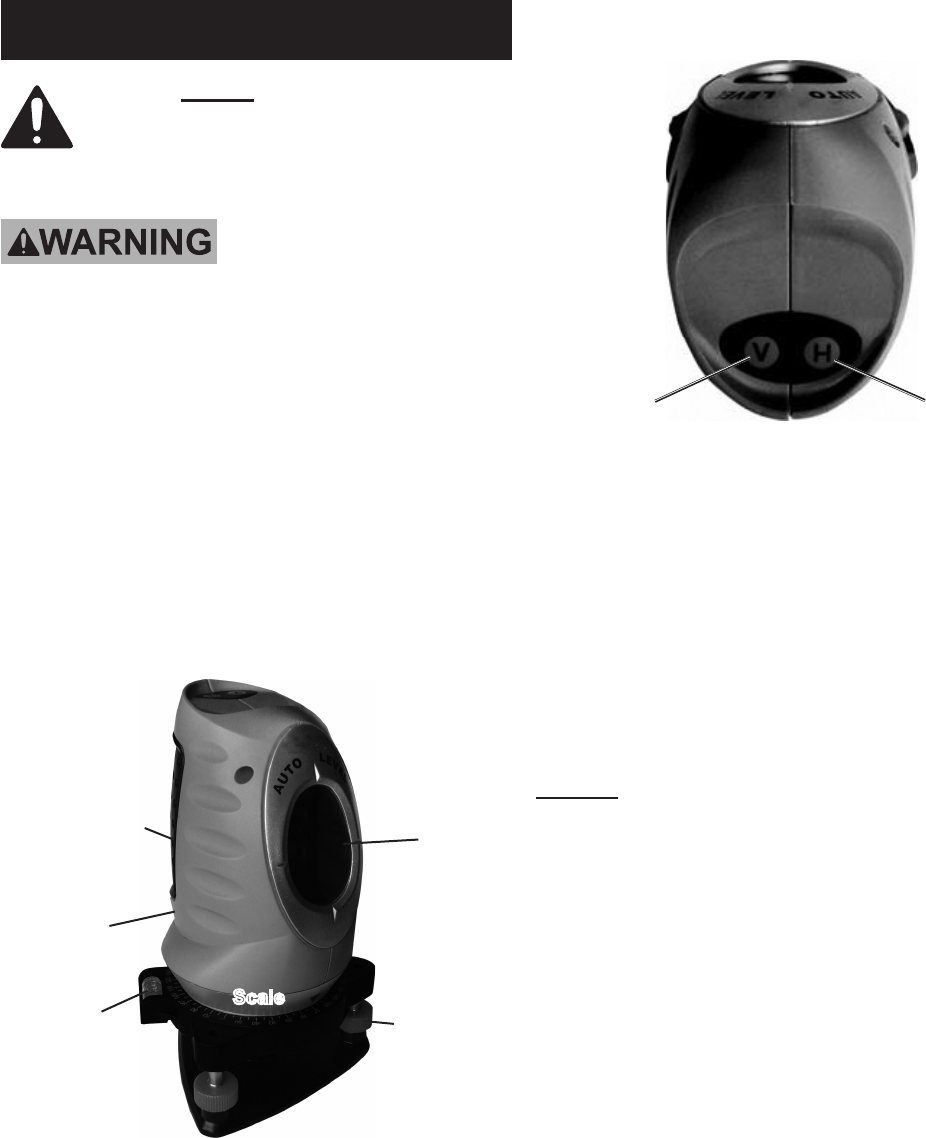

Figure 2
Laser
Opening
Tri-brack
(one corner)
Vial
Scale
Battery
Compartment
Pendulum
Lock
(hidden)
3. Push the Pendulum Lock to the right to free
the pendulum. See Figure 1 on page 3.
4. Press the button for the desired line(s) on
the top of the unit to switch “ON”.
Figure 3
Vertical
Line Button
Horizontal
Line Button
5. The Laser Level will work properly if it is
positioned within its self-leveling range.
6. Allow 4-6 seconds for the horizontal
and vertical Laser lines to be stabilized.
After stabilization, the Laser lines can be used for
measurement reference. Laser lines may swing
slightly due to vibration from surroundings.
7. To prevent damage to the level, tighten the
pendulum lock (see Figure 1 on page 3)
after use and store in the carrying case.
NOTICE: If the pendulum lock is not engaged
before movement, the level may be damaged.
After Using Laser
1. Detach Laser from Tripod.
2. Switch off both laser lines, horizontal and vertical.
Check to see that both indicator LED’s are off.
3. Engage Pendulum Lock by moving it to the left.
See Figure 1 on page 3. After use the
Pendulum Lock should be locked before the
instrument is put away in the Carrying Case.
