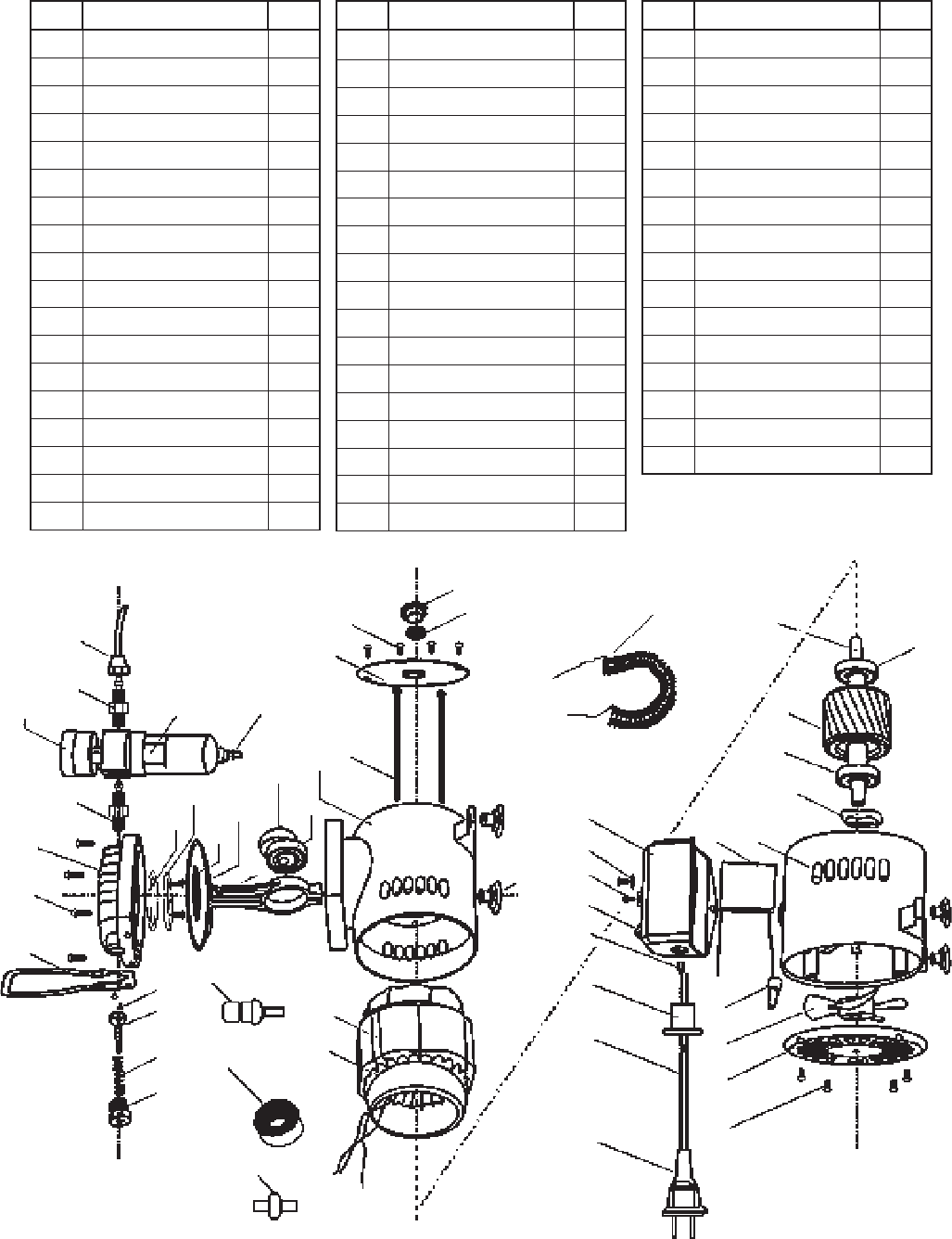

Assembly Drawing
Parts List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
41
42
43
44
45
46
47
48
49
50
52
51
40
REV 05c
Part Description Q’ty
1 Plug 1
2 Cord 1
3 Sheath 1
4 Sheath 1
5 Switch 1
6 Screw M4X8 2
7 Washer 4mm 2
8 Switch Box 1
9 Screw M4X8 2
10 Back Cover 1
11 Fan 1
12 Sheath 1
13 Capacitor 1
14 Back Housing 1
15 Foot Pad 1
16 Bearing 1
17 Rotor 1
18 Bearing 1
Part Description Q’ty
19 Main Bearing 1
20 Cord Ring 1
21 Stator 1
22 Foot Pad 4
23 Front Housing 1
24 Screw M4x110 2
25 Front Cover 1
26 Screw M4X8 4
27 Filter Net 1
28 Filter Cover 1
29 Adjusting Screw 1
30 Spring 1
31 Seal Cover 1
32 Screw M4X6 2
33 Handle 1
34 Jar Screw M4X20 4
35 Jar Cover 1
36 Connector 1
Part Description Q’ty
37 Pressure Meter 1
38 Air Outlet 1
39 Brass Nut 1
40 Coil Hose 1
41 Sealed Ring 1
42 Filter 1
43 Drain 1
44 Press Board 1
45 Screw M4x10 2
46 Gasket 1
47 Connector 1
48 Wheel 1
49 Bearing 1
50 Hose Adapter 1
51
1
/
4
”-18 NPT Adapter 1
52 Thread Seal Tape 1
