METHODS OF OPERATION
This Stapler is equipped with the push lever and does not operate unless the push lever is
depressed (upward position).
There are two methods of operation to drive staples with this Stapler.
They are:
1. Intermittent operation (Trigger fire):
2. Continuous operation (Push lever fire):

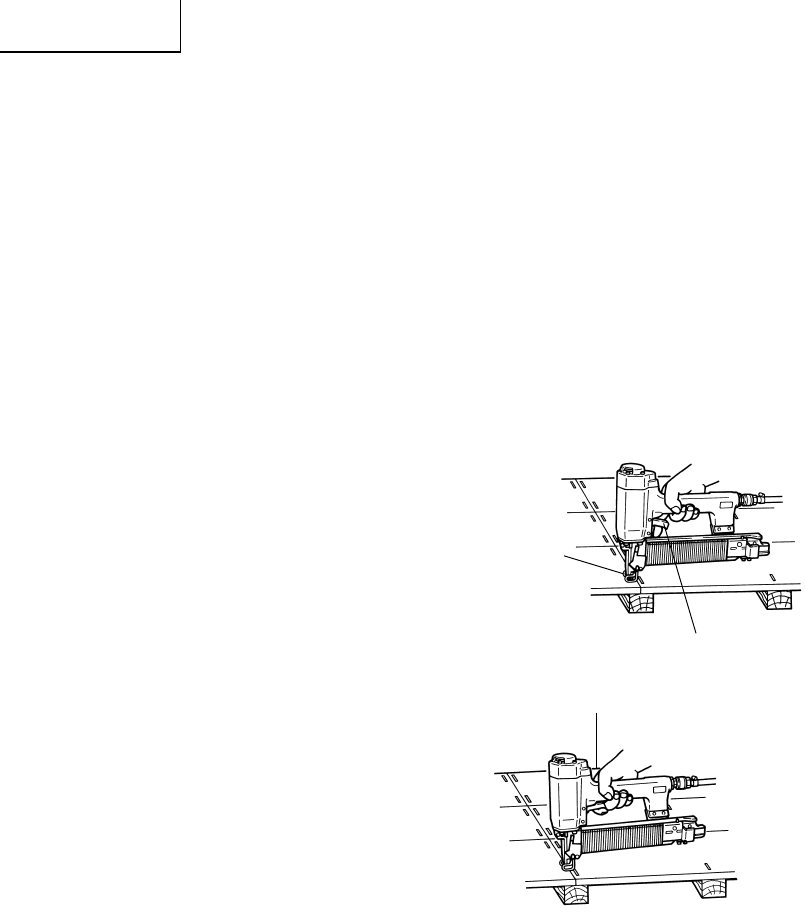

(1) Intermittent operation (Trigger fire)
1 Position the staple outlet on the workpiece
with finger off the trigger.
2 Depress the push lever firmly until it is
completely depressed.
3 Pull the trigger to drive a staple.
4 Remove finger from the trigger.
To drive another staple, move the Stapler along
the workpiece and repeat this procedure.
Push
Lever
Trigger
2
3
d
(2) Continuous operation (Push lever fire)
1 Pull the trigger with the Stapler off
the workpiece.
2 Depress the push lever against the
workpiece to drive a staple.
3 Move the Stapler along the workpiece
with a bouncing motion.
Each depression of the push lever
will drive a staple.
As soon as the desired number of staples
have been driven, remove finger from the
trigger.
Previously pull the trigger
NOTE:
After stapling:
1) disconnect air hose from the Stapler;
2) remove all staples from the Stapler;
3) supply 2 3 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler;
and
4) open the petcock on the air compressor tank to drain any moisture.
c
1
3
d
d
c
Never drive staples from both sides of a wall at the same time. Staples
can be driven into and through the wall and hit a person on the
opposite side.
Never use Stapler which is defective or operating abnormally.
Do not use Stapler as hammer.
Disconnect air hose from Stapler when:
1) it is not in use;
2) leaving work area;
3) moving it to another location; and
4) handing it to another person.
