I F--.I
A

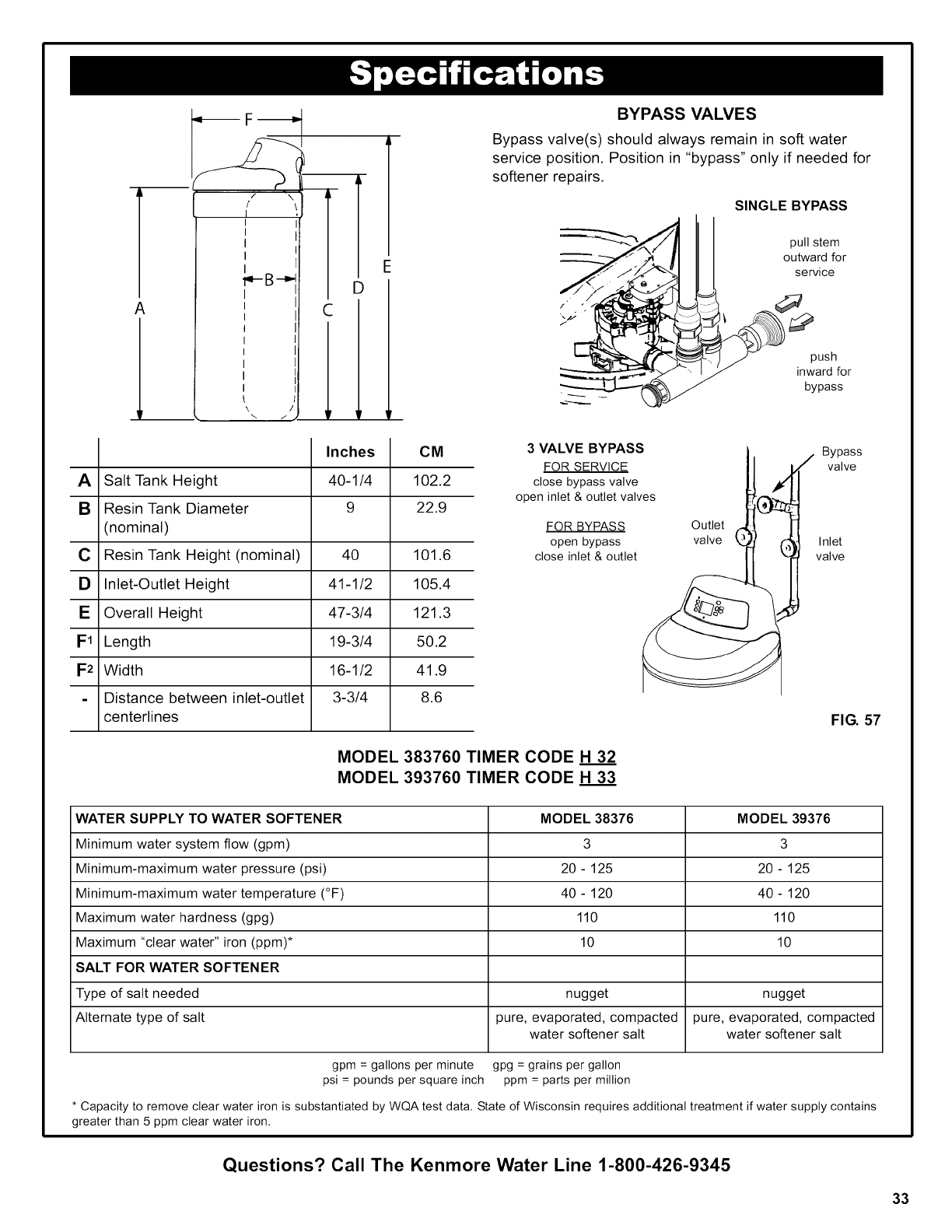

BYPASS VALVES
Bypass valve(s) should always remain in soft water
service position. Position in "bypass" only if needed for
softener repairs.
SINGLE BYPASS
__ pull stem
outward for
I service
,nw ush or
Inches CM
A Salt Tank Height 40-1/4 102.2
B Resin Tank Diameter 9 22.9
(nominal)
C Resin Tank Height (nominal) 40 101.6
D Inlet-Outlet Height 41-1/2 105.4
E Overall Height 47-3/4 121.3
I=1 Length 19-3/4 50.2
1=2 Width 16-1/2 41.9
- Distance between inlet-outlet 3-3/4 8.6
centerlines
3 VALVE BYPASS Bypass
FOR SERVICE valve
close bypass valve
open inlet & outlet valves
FOR BYPASS Outlet
open bypass valve Inlet
close inlet & outlet valve
MODEL 383760 TIMER CODE H 32
MODEL 393760 TIMER CODE H 33
FIG. 57
WATER SUPPLY TO WATER SOFTENER MODEL 38376 MODEL 39376
Minimum water system flow (gpm) 3 3
Minimum-maximum water pressure (psi) 20 - 125 20 - 125
Minimum-maximum water temperature (°F) 40 - 120 40 - 120
Maximum water hardness (gpg) 110 110
Maximum "clear water" iron (ppm)* 10 10
SALT FOR WATER SOFTENER
Type of salt needed nugget nugget
Alternate type of salt pure, evaporated, compacted pure, evaporated, compacted
water softener salt water softener salt
gpm = gallons per minute gpg = grains per gallon
psi = pounds per square inch ppm = parts per million
* Capacityto remove clear water iron is substantiated by WQA test data. State of Wisconsin requires additional treatment if water supply contains
greaterthan 5 ppmclear water iron.
Questions? Call The Kenmore Water Line 1-800-426-9345
33
