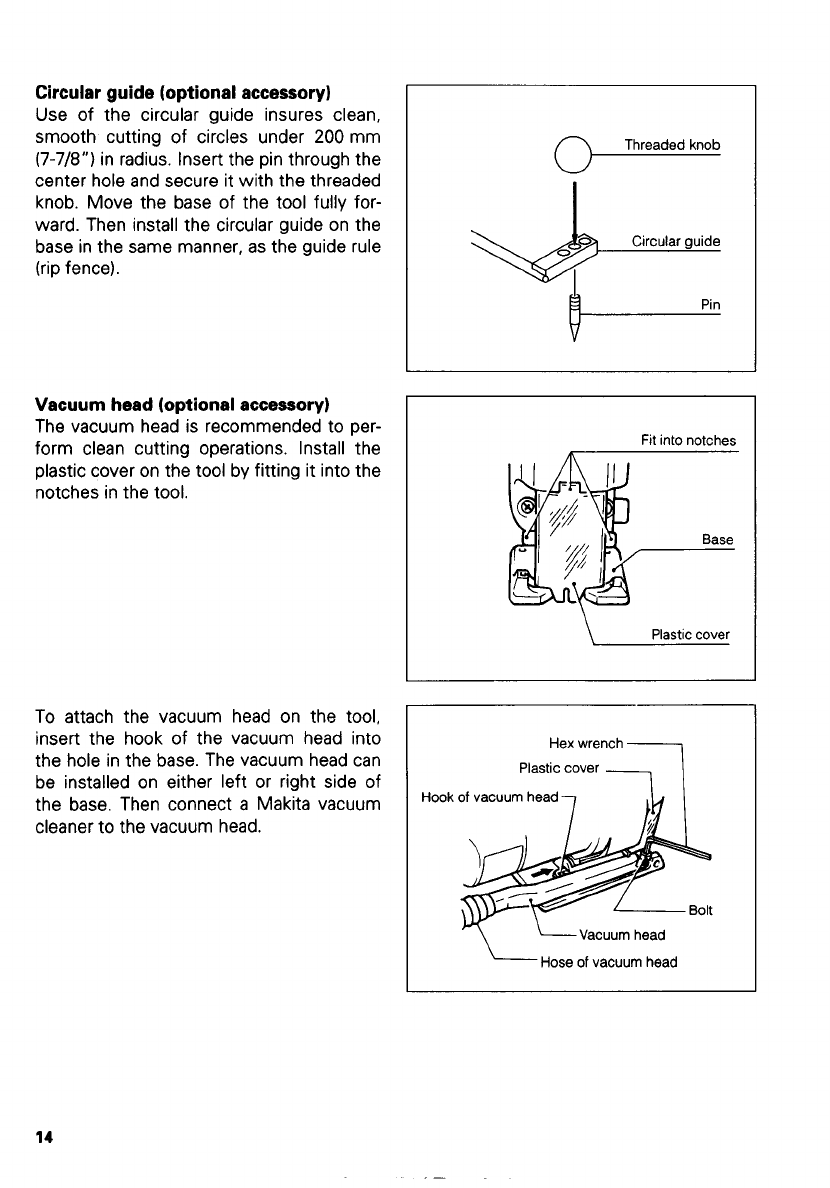

Circular guide (optional accessory)
Use
of
the circular guide insures clean,
smooth cutting of circles under
200
mm
(7-7/8")
in radius. Insert the pin through the
center hole and secure
it
with the threaded
knob. Move the base of the tool fully for-
ward. Then install the circular guide on the
base in the same manner, as the guide rule
(rip fence).
Vacuum head (optional accessory)
The vacuum head is recommended to per-
form clean cutting operations. Install the
plastic cover on the tool by fitting
it
into the
notches in the tool.
To attach the vacuum head on the tool,
insert the hook
of
the vacuum head into
the hole in the base. The vacuum head can
be installed on either left or right side of
the base. Then connect
a
Makita vacuum
cleaner to the vacuum head.
Fit
into notches
@
Base
L
.
\
Plastic cover
Hex wrench
Plastic cover
-
I
-
Hose
of
vacuum head
14
