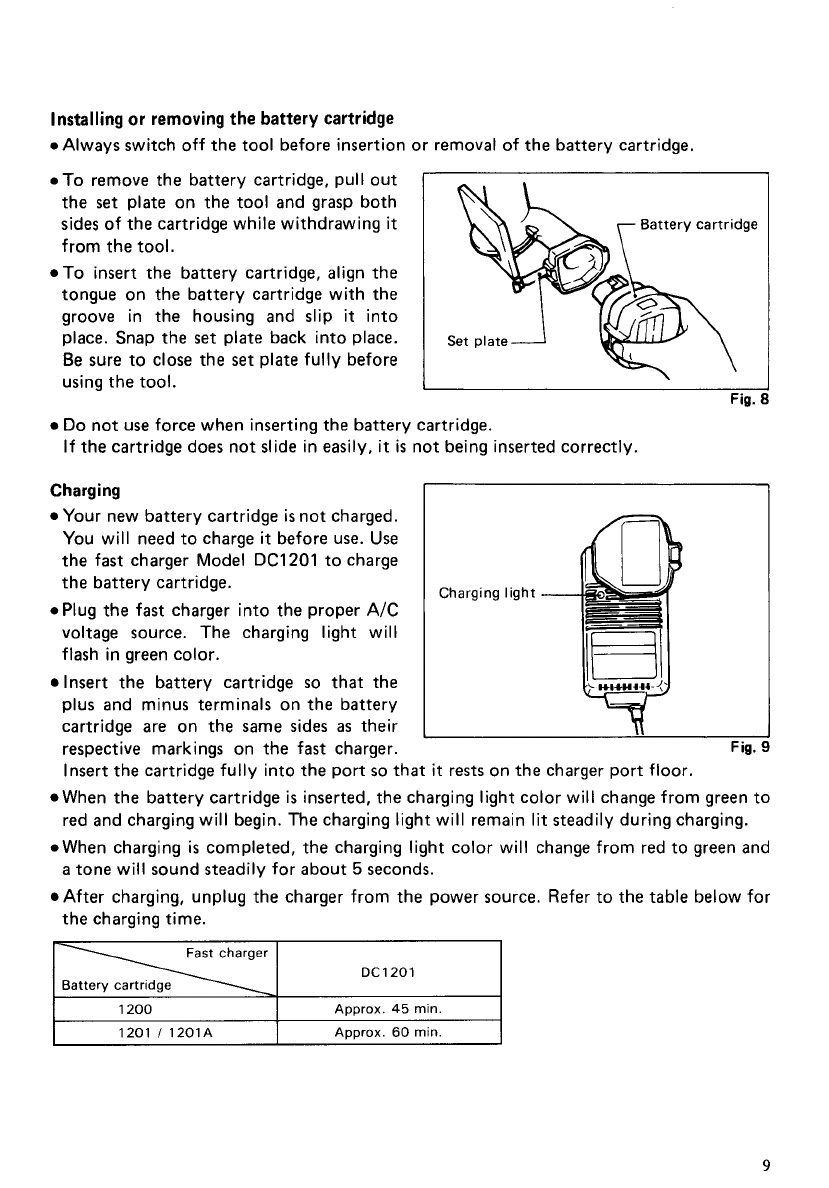

Installing or removing
the
battery cartridge
0
Always switch off the tool before insertion or removal of the battery cartridge.
0
To
remove the battery cartridge, pull out
the
set
plate on the tool and grasp both
sides of the cartridge while withdrawing
it
from the tool.
To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip
it
into
place. Snap the
set
plate back into place.
Be sure to close the
set
plate fully before
using the tool.
Battery cartridge
Fig.
Do not use force when inserting the battery cartridge.
If the cartridge does not slide in easily,
it
is
not being inserted correctly.
Charging
Your new battery cartridge
is
not charged.
You will need to charge
it
before use. Use
the fast charger Model DC1201 to charge
the battery cartridge.
*Plug the fast charger into the proper A/C
voltage source. The charging light will
flash in green color.
Insert the battery cartridge
so
that the
plus and minus terminals on the battery
cartridge are on the same sides
as
their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that
it
rests on the charger port floor.
When the battery cartridge
is
inserted, the charging light color will change from green to
red and charging will begin.
The
charging light will remain lit steadily during charging.
*When charging
is
completed, the charging light color will change from red to green and
a
tone will sound steadily for about
5
seconds.
After charging, unplug the charger from the power source. Refer to the table below for
the charging time.
Fig.
Fast charger
DC1201
I
1200
I
Approx.
45
min
I
1201
/
1201A
I
ADDrOX.
60
min
9
