INSTALLATION

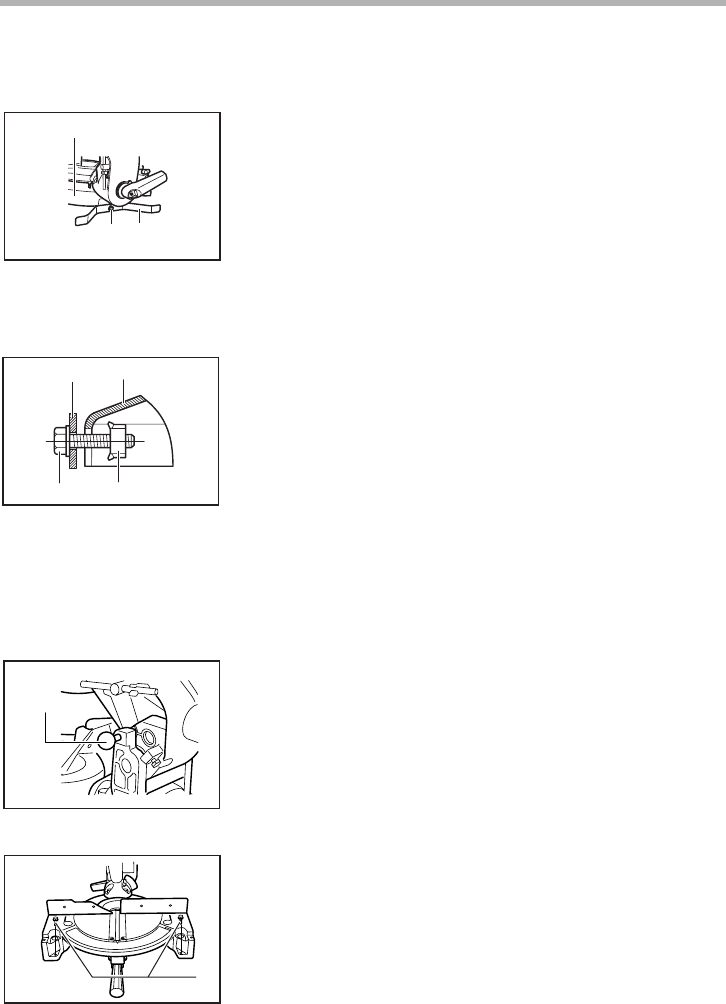

Installing auxiliary plate
Installing the auxiliary plate using the notch in the tool’s base
and secure it by tightening the hex bolt.
Bench mounting
When the tool is shipped, the handle is locked in the lowered
position by the stopper pin. Release the stopper pin by lower-
ing the handle slightly and pulling the stopper pin.
This tool should be bolted with two bolts to a level and stable
surface using the bolt holes provided in the tool’s base. This
will help prevent tipping and possible injury.
1. Base
2. Hex bolt
3. Auxiliary plate
1. Auxiliary plate
2. Base
3. Hex bolt
4. Nut
23
1
001823
12
34
001832
1. Stopper pin
1
001847
1. Bolt
1
001857
