OM-222 Page 14

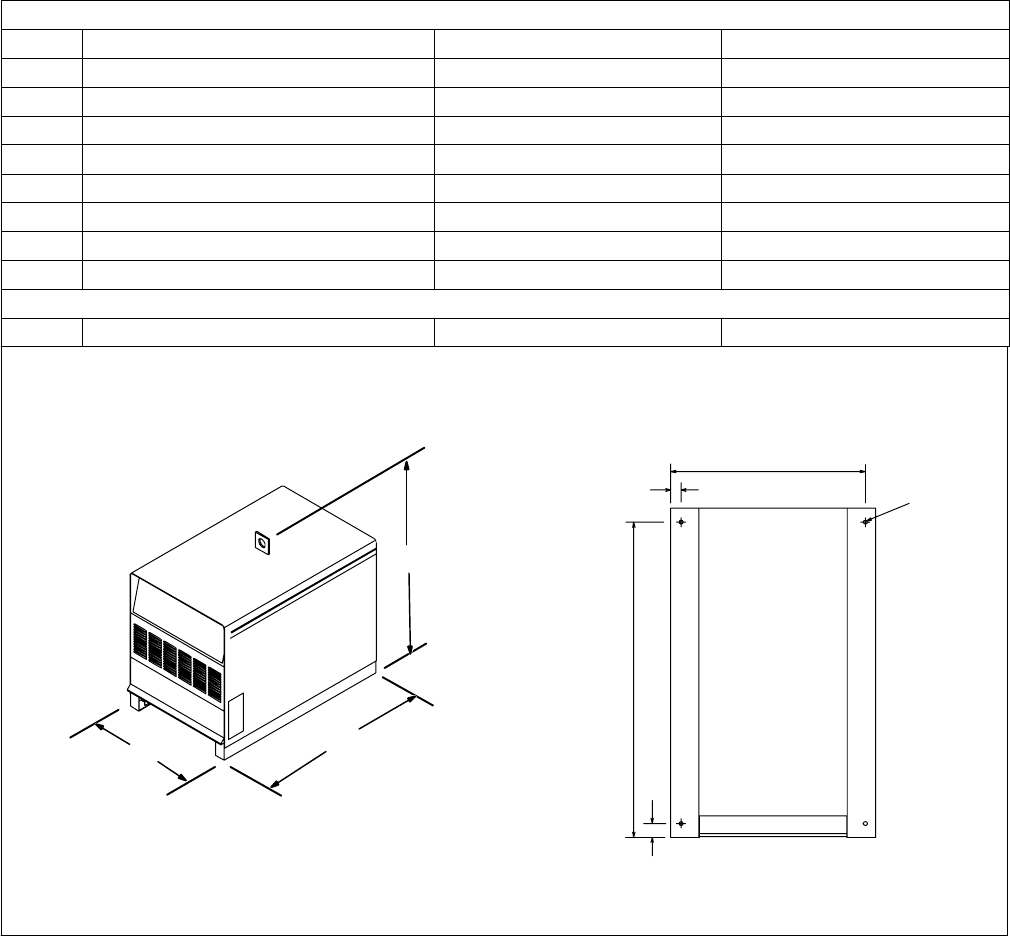

4-5. Dimensions And Weights
Dimensions
300 Amp Models 450 Amp Models 650 Amp Models
A 30 in (762 mm) including lift eye 30 in (762 mm) including lift eye 30 in (762 mm) including lift eye
B 23 in (585 mm) 23 in (585 mm) 23 in (585 mm)
C 30-1/2 in (775 mm) including strain relief 38 in (966 mm) including strain relief 38 in (966 mm) including strain relief
D 27-1/2 in (699 mm) 35 in (889 mm) 35 in (889 mm)
E 3/4 in (19 mm) 1-1/4 in (32 mm) 1-1/4 in (32 mm)
F 21-1/8 in (537 mm) 21-1/8 in (537 mm) 21-1/8 in (537 mm)
G 1-1/8 in (29 mm) 1-1/8 in (29 mm) 1-1/8 in (29 mm)
H 7/16 in (11 mm) Dia 7/16 in (11 mm) Dia 7/16 in (11 mm) Dia
Weight
352 lb (160 kg) 404 lb (183 kg) 505 lb (229 kg)
800 453-A / 801 530
D
E
F
G
H
4 Holes
A
B
C
Front
