NOTE:
Sparks may be produced when the
plug is inserted into the AC power
supply, but this is not a problem in
terms of safety.
2. Slide the battery dock cover back to
allow insertion of the Li-ion battery
pack.
● Verify that the cover is locked se
curely in place.

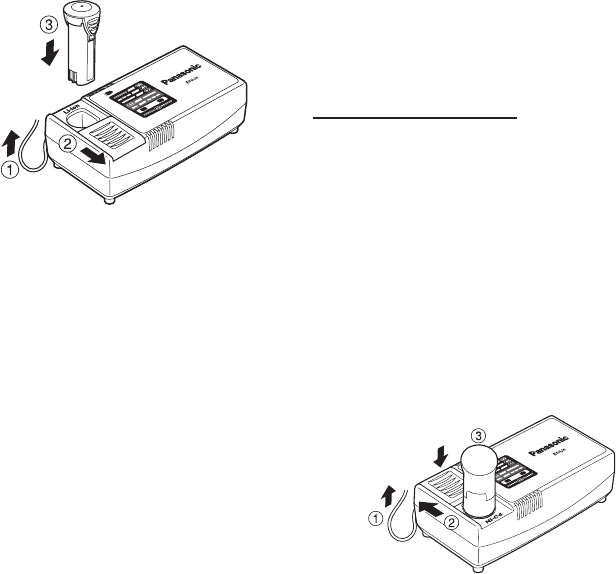

3. Insert the battery pack firmly into the
charger.
To AC
outlet
4. During charging, the charging lamp
will be lit.
When charging is completed, an inter-
nal electronic switch will automatically
be triggered to prevent overcharging.
• Charging will not start if the battery
pack is warm (for example, immedi-
ately after heavy-duty operation).
The orange standby lamp will be
flashing until the battery cools down.
Charging will then begin automati
-
cally.
5.
The charge lamp (green) will flash
slowly once the battery is approxi-
mately 80% charged.
6.
When charging is completed, the
charging lamp will start flashing quickly
in green color.
7. If the temperature of the battery pack
is 0°C or less, charging takes longer to
fully charge the battery pack than the
standard charging time. Even when
the battery is fully charged, it will have
approximately 50% of the power of a
fully charged battery at normal operat-
ing temperature.
8. If the power lamp does not light im-
mediately after the charger is plugged
in, or if after the standard charging
time the charging lamp does not flash
quickly in green, consult an authorized
dealer.
9. If a fully charged battery pack is in-
serted into the charger again, the
charging lamp lights up. After several
minutes, the charging lamp may flash
quickly to indicate the charging is
completed.
Ni-Cd Battery Pack
NOTE:
When you charge the battery pack
for the first time, or after prolonged
storage, charge it for about 24
hours to bring the battery up to full
capacity.
Battery charger (EY0L10)
1. Plug the charger into the AC outlet.
NOTE:
Sparks may be produced when the
plug is inserted into the AC power
supply, but this is not a problem in
terms of safety.
2. Slide the battery dock cover back to
allow insertion of the Ni-Cd battery
pack.
● Verify that the cover is locked securely
in place.
3. Insert the battery pack firmly into the
charger.
To AC
outlet
4.
During charging, the charging lamp will
be lit.
When charging is completed, an inter-
nal electronic switch will automatically
be triggered to prevent overcharging.
• Charging will not start if the battery
pack is warm (for example, immedi-
ately after heavy-duty operation).
The orange standby lamp will be
flashing until the battery cools down.
Charging will then begin automati-
cally.
