11
-
charger and battery pack with a
cloth, etc., while charging.
22) Use of an attachment not recom-
mended may result in a risk of fire,
electric shock, or injury to persons.
23) Do not short the battery pack. A
battery short can cause a large cur-
rent flow, over heating and burns.
24) NOTE: If the supply cord of this ap-
pliance is damaged, it must only be
replaced by a repair shop appoint-
ed by the manufacturer, because
special purpose tools are required.
25)
TO REDUCE THE RISK OF ELEC-
TRIC SHOCK, THIS APPLIANCE HAS
A POLARIZED PLUG (ONE BLADE IS
WIDER THAN THE OTHER).
This plug will fit in a polarized outlet
only one way. If the plug does not fit
fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified
electrician to install the proper outlet.
Do not change the plug in any way.
WARNING:
• Do not use other than the Panason-
ic battery packs that are designed
for use with this rechargeable tool.
• Do not dispose of the battery pack in
a fire, or expose it to excessive heat.
• Do not drive the likes of nails into the
battery pack, subject it to shocks,
dismantle it, or attempt to modify it.
• Do not allow metal objects to touch
the battery pack terminals.
• Do not carry or store the battery
pack in the same container as nails
or similar metal objects.
• Do not charge the battery pack in
a high-temperature location, such
as next to a fire or in direct sunlight.
Otherwise, the battery may over-
heat, catch fire, or explode.
• Never use other than the dedicated
charger to charge the battery pack.
Otherwise, the battery may leak,
overheat, or explode.
• After removing the battery pack
from the tool or the charger, always
reattach the pack cover. Otherwise,
the battery contacts could be short-
ed, leading to a risk of fire.
IV. ASSEMBLY
NOTE:
When attaching or removing a slide han-
dle, disconnect battery pack from tool.
CAUTION:
• Always be sure that the side han-
dle is installed securely before op-
eration.

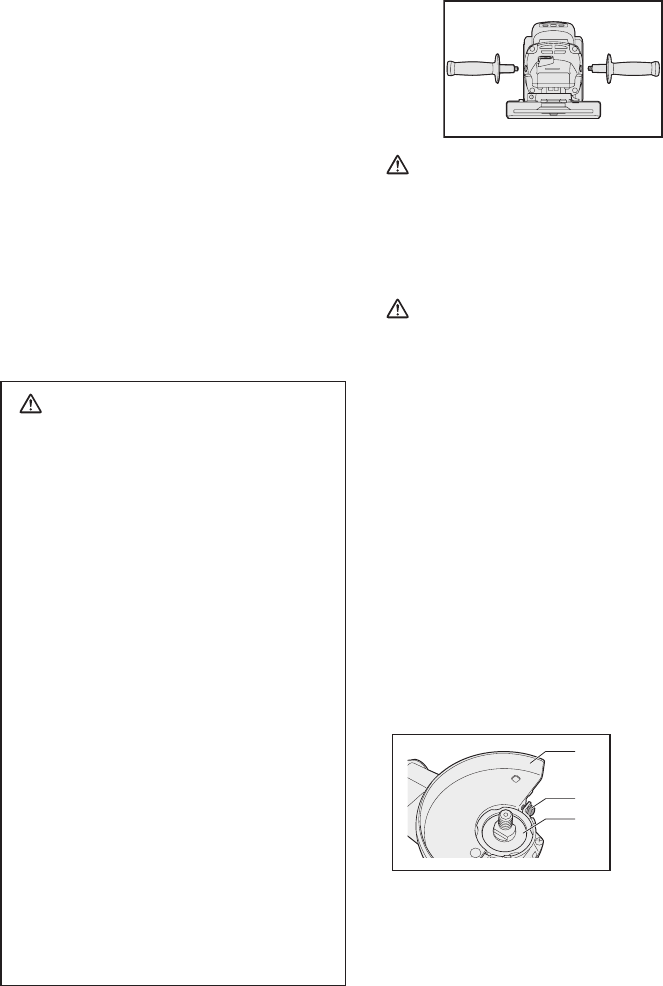

Screw the side handle securely as
shown in the figure.
CAUTION:
• Never actuate the lock pin when
the spindle is rotating. The tool
may be damaged.
Press the lock button to prevent spindle
rotation when installing or removing parts,
such as grinding disc, disc guard, etc.
Installing or removing disc
Inspection before use
• Has the correct grinding disc been
mounted for the object to be ground?
• Has the proper diameter of the grind-
ing disc been mounted for the tool
rating?
• Has the proper grinding disc com-
plied to safety standard listed below
been mounted?
U.S.A, Canada - ANSI
1. Grinding disc
guard
2. Spindle
3. Grinding disc
guard fixing
screw
3
2
1
