■HOW TO DISASSEMBLE KEYLESS CHUCK.
3 DISASSEMBLY/ASSEMBLY INSTRUCTIONS
Ref. No. 1A Procedure 1A Removal of the Keyless Drill Chuck.

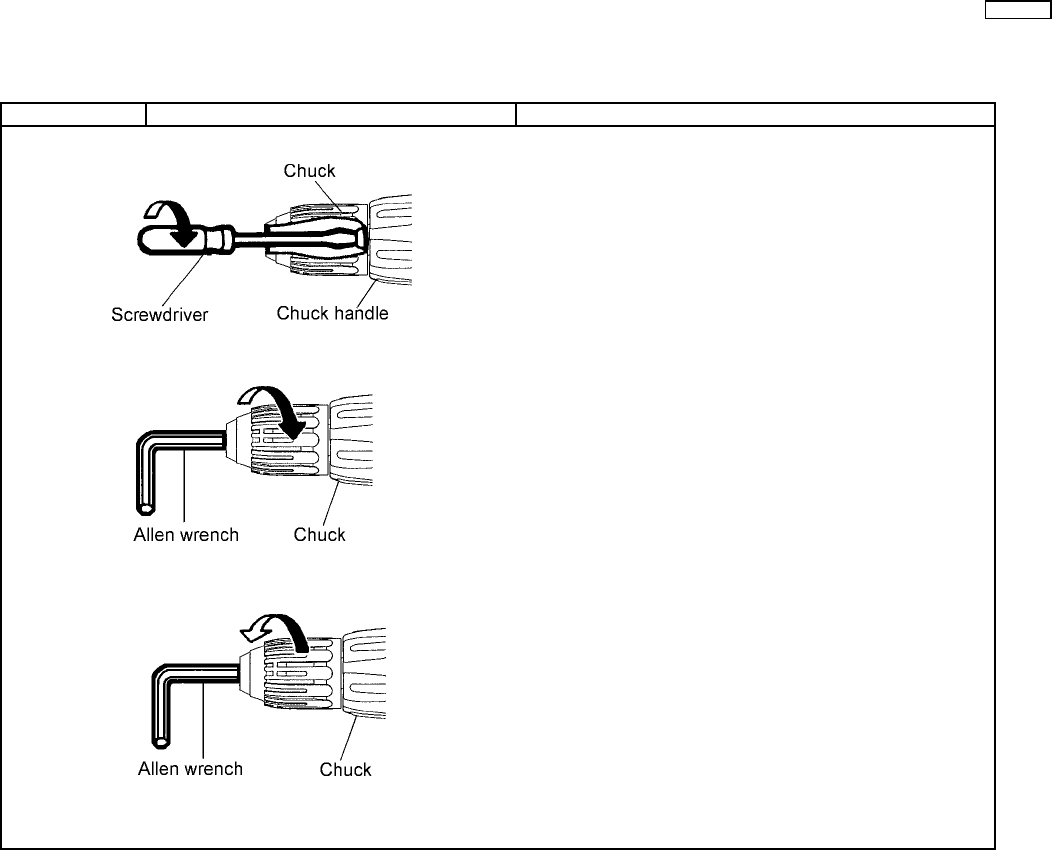

Fig. 1
Fig. 2
Fig. 3
1. Set the clutch handle to position 1 and select "LOW" position.
2. Turn the lock collar counterclockwise direction to open the chuck
jaws.
3. Use a screwdriver to turn the chuck fastening screw inside the
chuck clockwise direction of the arrow, and remove the screw. (See
Fig. 1)
NOTE :
If the chuck fastening screw will not come loose, insert the
allen wrench into the chuck and lightly tap in the clockwise
direction with a hammer to tighten the chuck, and then loosen
the chuck fastening screw. (See Fig. 2)
4.Insert the allen wrench into the chuck, and turn counterclockwise
direction in the arrow with holding the unit by the vise to remove
the chuck. (See Fig. 3)
