ATTACHING SAW ARM TO
THE CUTTING TRAY
1. Insert the water pump hose into
the largest hole in the side of the
cutting tray (from the outside)
Fig. 6, pull the hose through the
hole.
2. Position the saw arm (C) Fig. 1,
onto the cutting tray as shown in
Fig. 7.
3. Insert 2 screws (G) Fig. 1,
through the 2 holes on the inside
of the cutting tray Fig. 8, and
tighten securely.
4. Place the water pump (E) Fig. 1,
into the bottom of the water tray
Fig. 9.
5. Attach the water pump hose,
from the saw, to the water pump
with the hose adapter (R) Fig. 1,
as shown in Fig. 9.

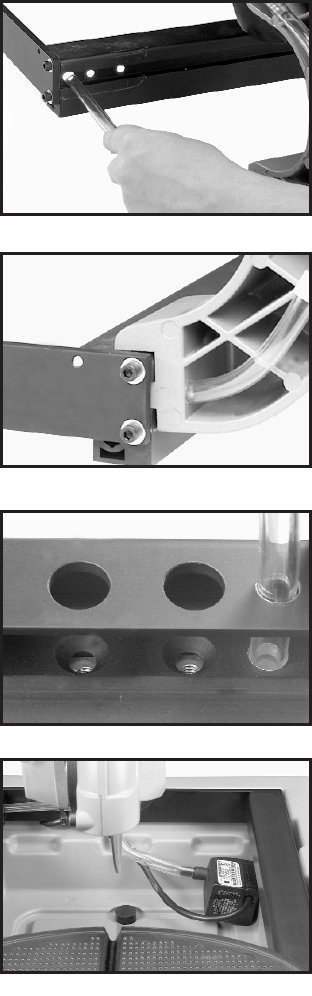

Fig. 9
Fig. 8
Fig. 6
Fig. 7
