8
FUNCTIONAL DESCRIPTION
ASSEMBLY
FOREWORD
Porter-Cable Model 1500 Tile Saw is designed to cut ceramic tile. The
Model 1500 is powered by a 7.4 amp motor. The tile saw has the capacity to
cut 14" in length, 10" x 10” tile cut diagonally, and 2" depth cut.
UNPACKING
1. Carefully remove the machine from the carton. We recommend you
retain all packing materials until after you have inspected and
satisfactorily operated the machine.
Do not connect the machine to the power source until you
have read and understood this entire instruction manual.
2. Place the machine on a firm, level surface where there is plenty of room
for handling and properly supporting the workpiece.
3. Familiarize yourself with all features and controls as explained in this
manual.

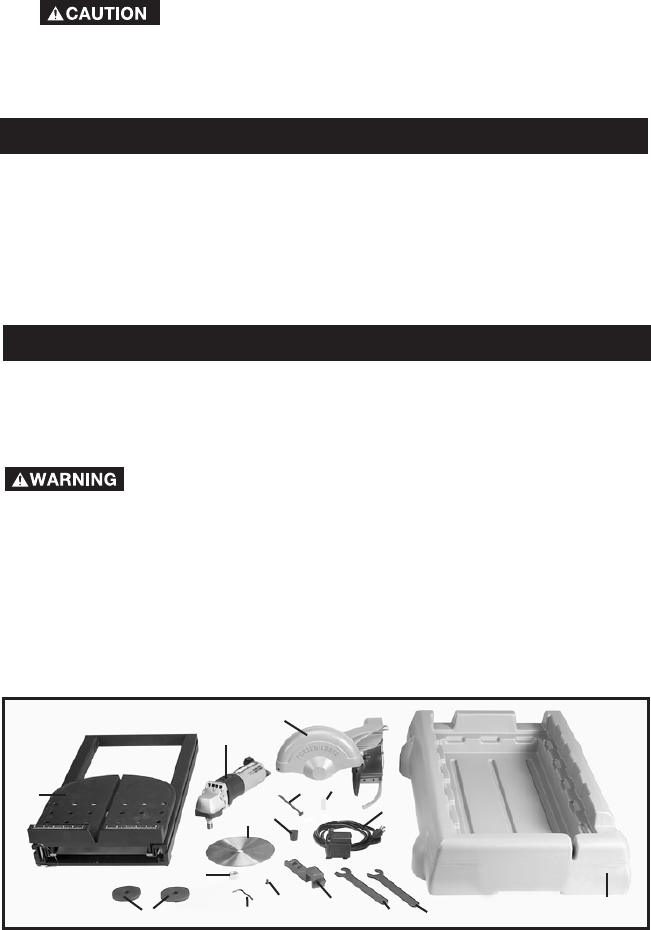

4. Unassembled items are shown in Fig. 1, for identification and use in
assembling the saw.
Do not operate your tool on a current on which the
voltage is not within correct limits. Do not operate tools rated A.C.
only on D.C. current. To do so may seriously damage the tool.
Fig. 1
A
B
C
D
E
F
P
N
M
K
J
I
G
O
Q
R
A Water tray (1)
B Cutting tray (1)
C Saw arm (1)
D Motor (1)
E Water pump (1)
F Water plug (1)
G ¼ - 20 x
1
/2" Flat head screws (5)
I Inner and outer blade flange
J Blade (1)
K Hex wrench (1)
M Flange wrench (1)
N Arbor wrench (1)
O Arbor nut (1)
P Rip guide (1)
Q Cable tie (3)
R Hose adapter (1)
