Description of Operation
Become familiar with these controls before operating the unit.
On/Auto/Off Switch: Turn this switch
ON to provide automatic power to
the pressure switch and OFF to
remove power at the end of each
use.
Pressure Switch: The pressure
switch automatically starts the motor
when the air tank pressure drops
below the factory set “cut-in”
pressure. It stops the motor when the
air tank pressure reaches the factory
set “cut-out” pressure.
Safety Valve: If the pressure switch
does not shut off the air compressor
at its “cut-out” pressure setting, the
safety valve will protect against high
pressure by “popping out” at its factory set pressure (slightly higher than the
pressure switch “cut-out” setting).
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air
pressure in the tank.
Globe Valve (sold separately): Opens and closes air discharge valve. Turn
knob counter-clockwise to open and clockwise to close.
Drain Valve: The drain valve is located at the
base of the air tank and is used to drain
condensation at the end of each use.
Air Compressor Pump (not shown):
Compresses air into the air tank. Working air is
not available until the compressor has raised the
air tank pressure above that required at the air outlet.
Check Valve: When the air compressor is operating,
the check valve is “open”, allowing compressed air to
enter the air tank. When the air compressor reaches
“cut-out” pressure, the check valve “closes”, allowing
air pressure to remain inside the air tank.
OPERATION

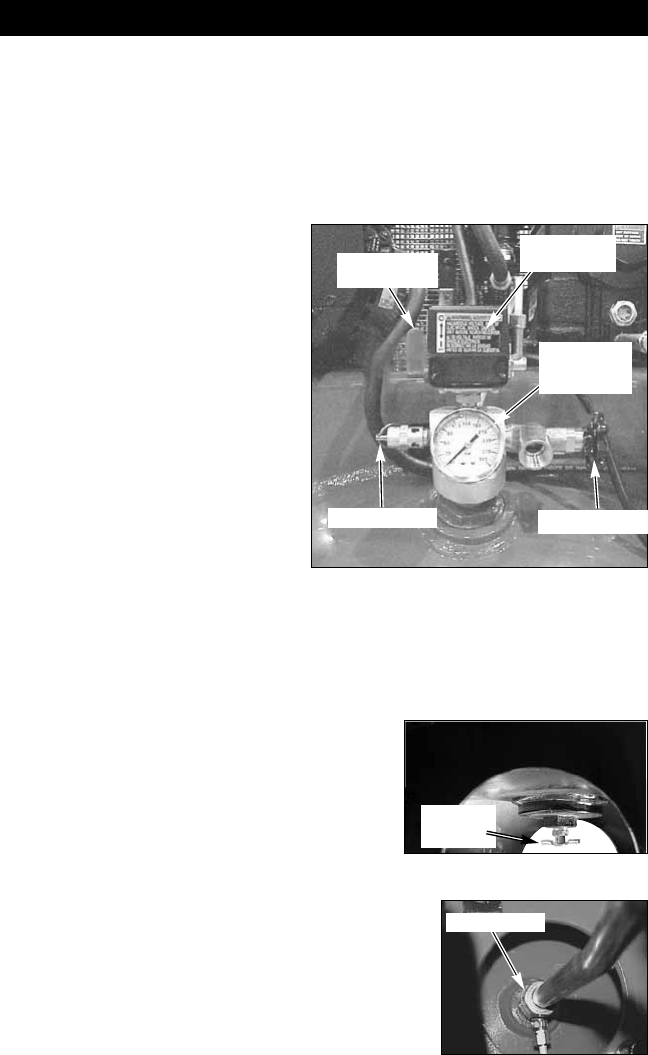

Know Your Air Compressor
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Globe Valve
Tank
Pressure
Gauge
Safety Valve
On/Auto/Off
Switch
Pressure
Switch
Drain
Valve
Check Valve
