HOW TO SET UP YOUR UNIT
Location of the Air Compressor
Locate the air compressor in a clean, dry and well ventilated area. The air
compressor should be located at least 12" away from the wall or other
obstructions that will interfere with the flow of air. The air compressor pump and
shroud are designed to allow for proper cooling. The ventilation openings on the
compressor are necessary to maintain proper operating temperature. Do not
place rags or other containers on or near these openings.
GROUNDING INSTRUCTIONS
RISK OF ELECTRICAL SHOCK. In the event of a short
circuit, grounding reduces the risk of shock by providing an
escape wire for the electric current. This air compressor must be properly
grounded.
The portable air compressor is equipped with a cord having a grounding wire
with an appropriate grounding plug (see following illustrations). The plug must
be used with an outlet that has been installed and grounded in accordance with
all local codes and ordinances.
1. The cord set and plug with this unit contains a grounding pin. This plug
MUST be used with a grounded outlet.
IMPORTANT: The outlet being used must
be installed and grounded in accordance
with all local codes and ordinances.
2. Make sure the outlet being used has
the same configuration as the
grounded plug. DO NOT USE AN
ADAPTER. See illustration.
3. Inspect the plug and cord before each use. Do not use if there are signs of
damage.
4. If these grounding instructions are not completely understood, or if in doubt
as to whether the compressor is properly grounded, have the installation
checked by a qualified electrician.
IMPROPER GROUNDING CAN RESULT IN ELECTRICAL
SHOCK. Do not modify the plug provided. If it does not fit
the available outlet, a correct outlet should be installed by a qualified
electrician. Repairs to the cord set or plug MUST be made by a qualified
electrician.

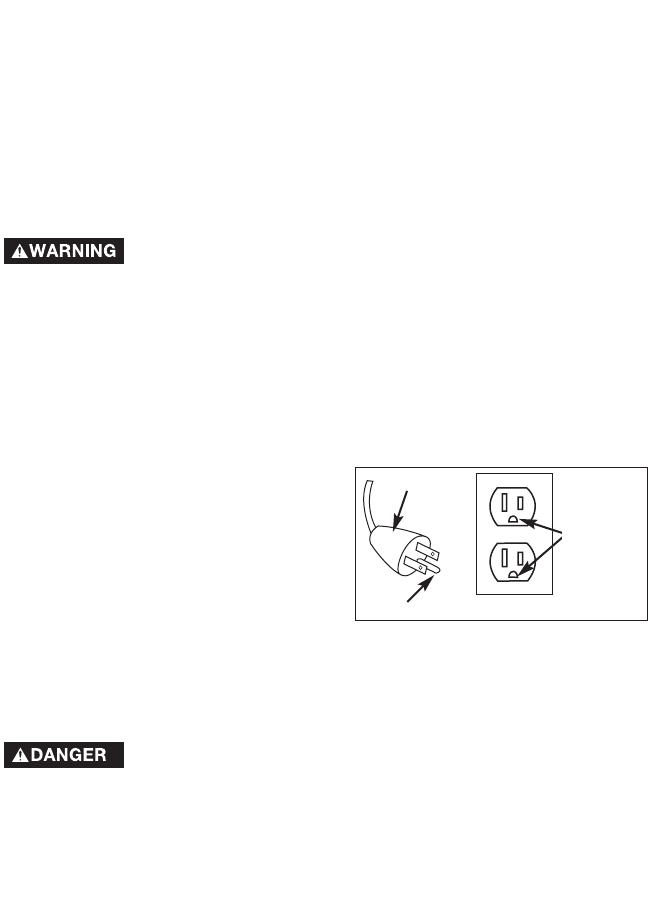

Grounding Pin
Grounded
Outlets
Plug
INSTALLATION
