Page 9
FEATURES

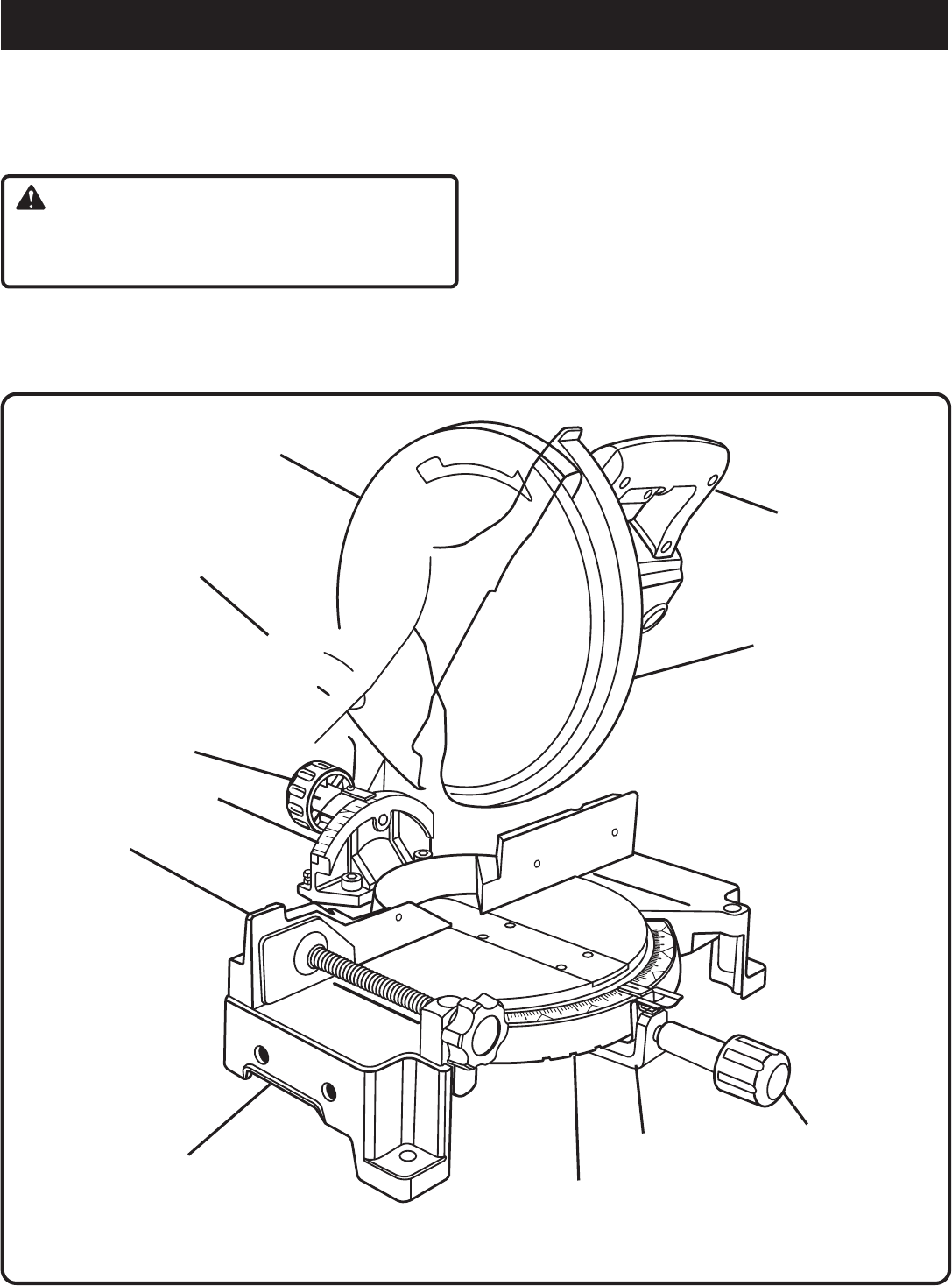

KNOW YOUR COMPOUND MITER SAW
See Figure 2.
Before attempting to use your saw, familiarize yourself with
all operating Features and Rules for Safe Operation.
WARNING:
Do not allow familiarity with your saw to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict severe injury.
15 AMP MOTOR
Your saw has a powerful 15 amp motor with sufficient power
to handle tough cutting jobs. It is made with all ball bearings.
10 in. BLADE
A 10 in. (254 mm) saw blade is included with your compound
miter saw. It is fine for most wood cutting operations, but for
fine joinery cuts or cutting plastic, use one of the accessory
blades available from your nearest dealer.
CUTTING CAPACITIES
When the miter angle (miter table) is set at 0°:
Maximum dimensional lumber sizes: 4 x 4
2 x 6
When the miter angle (miter table) is set at 45°:
Maximum dimensional lumber size: 2 x 4
Fig. 2
LOWER
BLADE GUARD
SAW ARM
MITER
LOCK HANDLE
SWITCH TRIGGER
"NO HANDS ZONE"
LABEL
"NO HANDS ZONE"
BOUNDARY LINE
MITER SCALE
DUST GUIDE
UPPER
BLADE GUARD
MITER FENCE
MITER TABLE
BEVEL SCALE
BEVEL
LOCK KNOB
POSITIVE STOP(S)
ZERO CLEARANCE
THROAT PLATE
CONTROL ARM
MITER
LOCK PLATE
MITER
TABLE FRAME
