-8-
SET UP
W1736 Overarm Router
NOTICE
When ordering replacement parts, refer to the parts
list and diagram in the back of the manual.
The following is a description of the inventory of the
components shipped with the
SHOP FOX
®
Model
W1736. Lay the components out and inventory your ship-
ment.

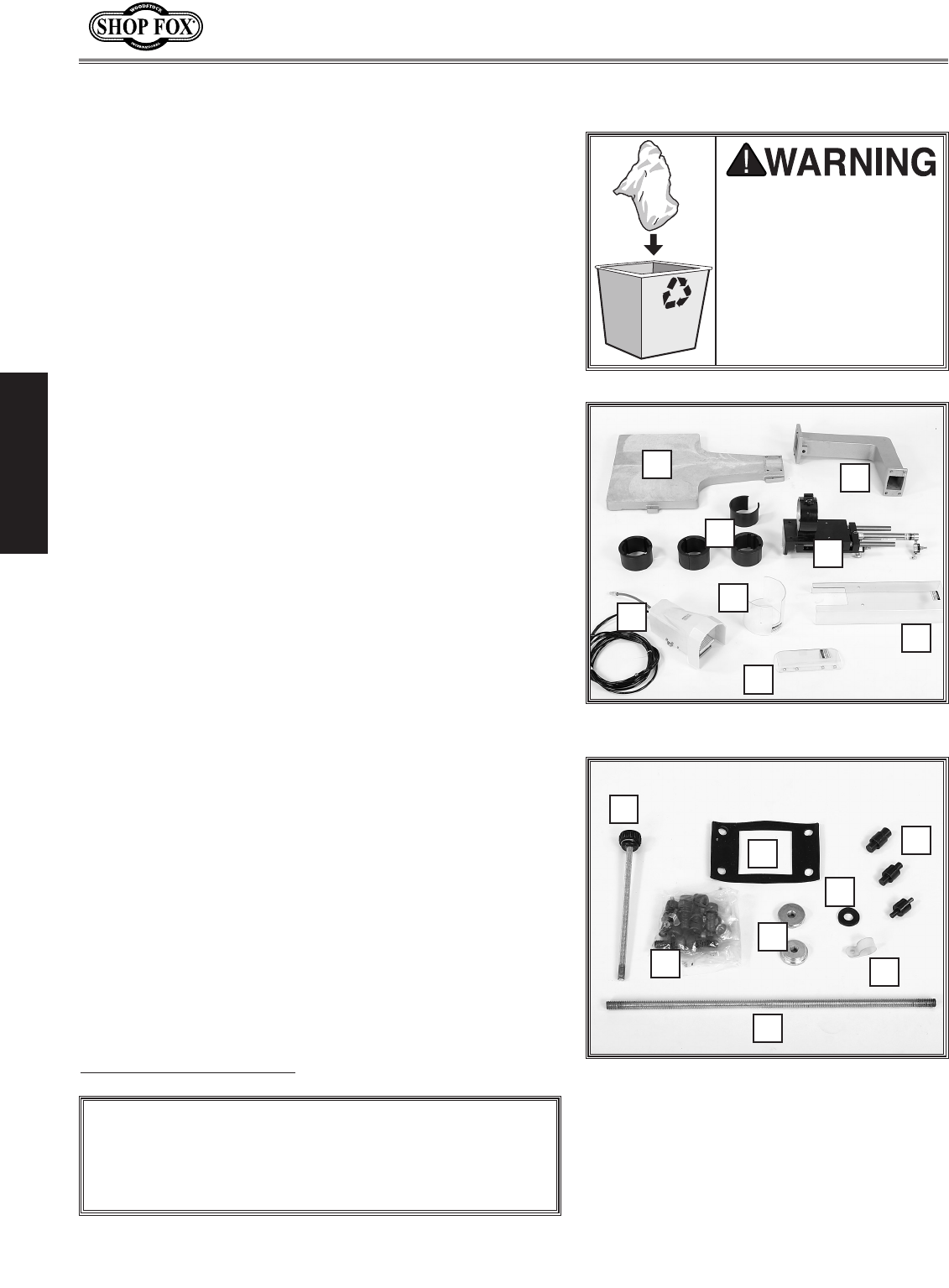

Main Inventory Components (Figure 1)
A. Table ........................................................1
B. Support Arm ................................................1
C. Router Adapters ..........................................4
• 3.25" (fits many Makita)
• 3.328" (fits
many Milwaukee)
• 3.5" (fits
many Bosch, Porter-Cable, & Makita)
• 4.2" (fits
many Porter-Cable)
D. Head Assembly .............................................1
E. Foot Switch Assembly .....................................1
F. Router Safety Guard ......................................1
G. Front Guard ................................................1
H. Side Guard ..................................................1
Part and Fastener Hardware (Figure
2)
I. Table Pin Knob Bolt .......................................1
J. Rubber Gasket .............................................1
K. Table Pins ...................................................3
L. Rubber Washer 11mm ....................................1
M. Round Adjustment Nuts M10-1.5 ........................2
N. Hardware Bag ..............................................1
• Cap Screws M10-1.5 x 45 ..............................
4
• Cap Screws M10-1.5 x 25 ..............................
4
• Lock Washers 10mm ....................................
8
• Flat Head Screws M5-.8 x 10 ..........................
4
• Lock Nut M10-1.5 .......................................
1
• Thumbscrews M5-.8 x 10 ..............................
2
• Plastic Washers 5mm ...................................
2
• Flange Screw M4-.7 x 12 ...............................
1
O. Cord Loop 5/8" .............................................1
P. Shaft Screw .................................................1
If any parts appear to be missing, examine the packag
-
ing carefully to be sure those parts are not among the
packing materials. If any parts cannot be found, find
the part number in the back of this manual and contact
Woodstock International, Inc. at 360-734-3482 or at
tech-support@shopfox.biz
Inventory
Figure 1. Main inventory components.
SUFFOCATION
HAZARD!
Immediately
discard
all plastic bags and
packing materials to
eliminate choking/suf-
focation hazards for
children and animals.
Figure 2. Part and fastener hardware.
A
B
C
D
E
F
G
H
I
J
K
N
M
L
O
P
