Model W1802 2 QT. Professional Spray Gun
-10-
Atomizing Cap and Fan
Adjustments
The atomizing cap needs to be adjusted
for horizontal or vertical spraying
patterns. Spraying in the wrong direction
may lead to material build up on the
atomizing cap horn. Many performance
problems are caused by clogged
atomizing holes on the atomizing cap
horns (see Cleaning on Page 11).

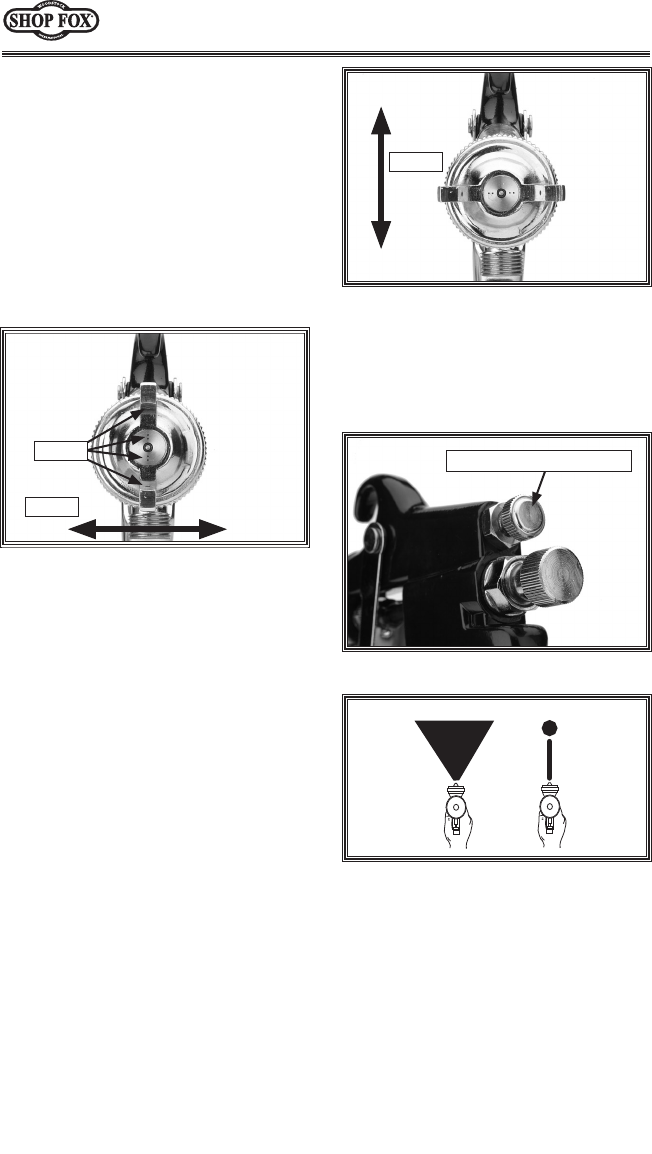

Figure 12. Set up for horizontal stroke
direction with vertical fan pattern.
Stroke
Holes
Figure 13. Set up for vertical spray stroke
with horizontal fan pattern.
Figure 15. Fan patterns.
Rotating the pattern adjustment knob in
Figure 14 will give you a range between
the two patterns in Figure
15.
Stroke
Figure 14. Pattern adjustment knob.
Pattern Adjustment Knob
