Model W1802 2 QT. Professional Spray Gun
-6-
Assembly
2. Attach the
3
⁄8" fluid hose to the
3
⁄8"
outlet on the cap (see Figure 3).

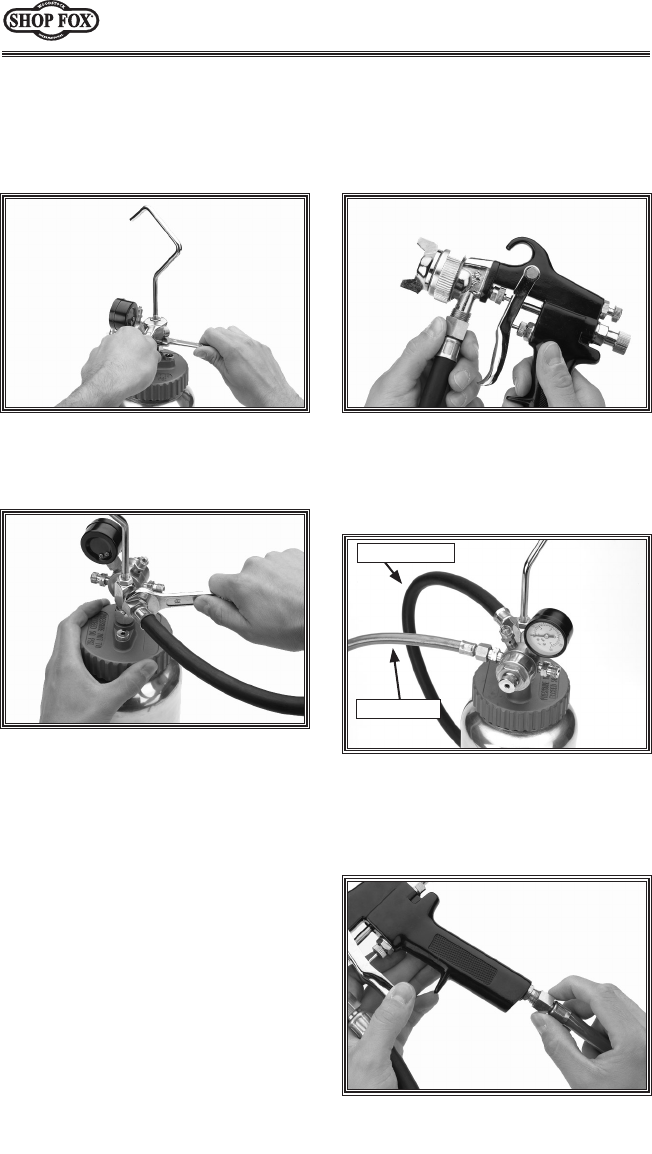

Figure 2. Installing hook/handle.
Figure 3. Installing fluid hose.
1.
Attach the hook/handle on the cap
with 19mm and 14mm wrenches (see
Figure 2).
Figure 5. Air hose installed.
Figure 6. Attaching hose to spray gun.
Figure 4. Attaching fluid hose
to spray gun.
3. Attach the other end of the
3
⁄8" fluid
hose to the
3
⁄8" fluid inlet on the
spray gun body (see Figure 4).
4. Attach the
1
⁄4" air hose to the
1
⁄4" air
outlet on the cap (see Figure 5).
5. Attach the other end of the
1
⁄4" air
hose to the
1
⁄4" air inlet on the spray
gun body (see Figure 6).
Fluid Hose
Air Hose
